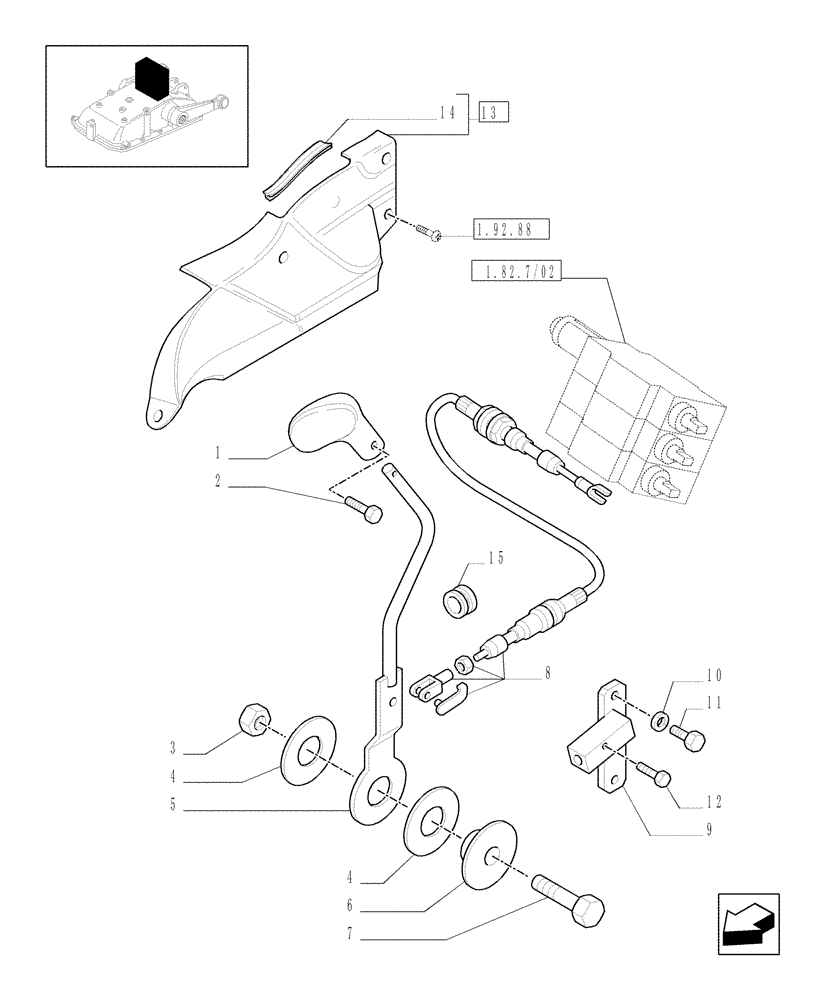

Запчасти Case IH JX1070N (1.92.82/02) - (VAR.390-498/2) THREE REMOTE VALVES & FLOW-RATE REGULATOR - CONTROL LEVER (10) - OPERATORS PLATFORM/CAB

1

82026097

KNOB

1шт.

2

13309177

SCREW,Pozidriv Oval Hd, Csk, M4 x 14mm, Full Thd

1шт.

3

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

1шт.

4

5170694

SHIM,21mm ID x 50mm OD x 2mm Thk

2шт.

5

5188366

LEVER

L/CAB

1шт.

5

5190435

LEVER

W/CAB

1шт.

6

47126539

SPACER,8.5mm ID x 50mm OD x 11mm L

L=700MM., VAR.498/2

1шт.

7

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

8

5199202

CABLE,645mm L

L=645MM., VAR390

1шт.

W/CAB, JX1060V, JX1070V, JX1075V

1шт.

8

5195173

CABLE

L=675MM., VAR.390

1шт.

JX1070N, JX1075N, JX1060V L/CAB, JX1070V L/CAB, JX1075V L/CAB

1шт.

8

5199201

CABLE

L=700MM., VAR.498/2

1шт.

9

5188363

BLOCK

1шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

11

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

2шт.

12

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

1шт.

13

5190244

GUARD

L/CAB

1шт.

13

5190235

GUARD

W/CAB

1шт.

14

44914718

GASKET

L=322MM., L/CAB

1шт.

15

10397580

INSULATING RING,16mm ID x 22mm Groove D x 29mm OD

16x2.5 W/CAB

1шт.
