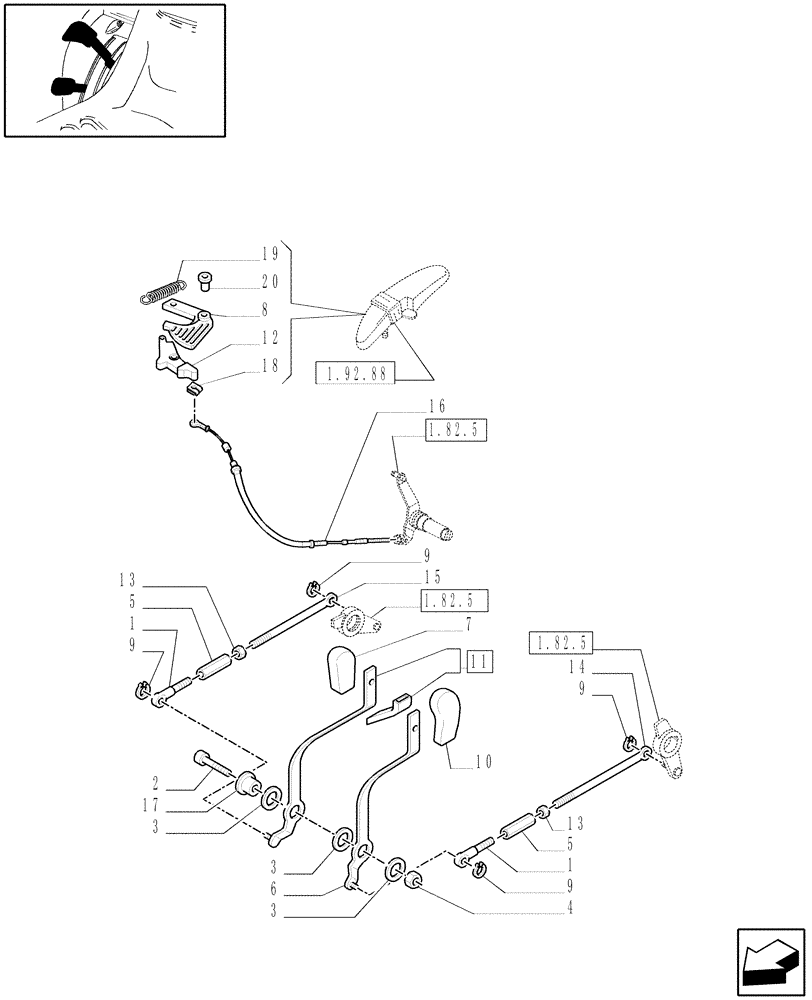

Запчасти Case IH JX1070N (1.92.82[02]) - LIFTER OUTER CONTROLS - L/CAB (10) - OPERATORS PLATFORM/CAB

1

5188164

EYE,Tie Rod

M6

2шт.

2

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

3

5170694

SHIM,21mm ID x 50mm OD x 2mm Thk

3шт.

4

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

2шт.

5

10091011

TURNBUCKLE,Adjusting, M6 x 1 x 70mm

2шт.

6

5188052

LEVER

Draught

1шт.

6

47135310

LEVER

VAR.493, JX1060V, JX1070V, JX1075V

1шт.

7

87342361

KNOB

1шт.

8

47125450

LEVER

1шт.

8

47135311

LEVER

VAR.493, JX1060V, JX1070V, JX1075V

1шт.

9

11087976

CIRCLIP,Ext., M8, BLO

4шт.

10

87342358

KNOB

1шт.

11

5188342

LEVER

1шт.

11

47135318

LEVER

Assy., VAR.493, JX1060V, JX1070V, JX1075V

1шт.

12

47125441

PUSH BUTTON

1шт.

13

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

14

5188165

TIE-ROD,M6 x 361mm L

Draught, JX1060V, JX1070V, JX1075V

1шт.

14

5188167

TIE-ROD,361mm L

Draught, JX1070N, JX1075N

1шт.

15

5188166

TIE-ROD,359mm L

Position, JX1060V, JX1070V, JX1075V

1шт.

15

5188168

TIE-ROD,359mm L

Position, JX1070N, JX1075N

1шт.

16

47129209

CABLE

1шт.

17

5188307

HUB

1шт.

18

11065374

SNAP RING,M5, Ext

DIA=5

1шт.

19

47125931

SPRING,12mm OD x 36.6mm L

1шт.

20

44906008

BUSHING,6.25mm ID x 16mm OD x 16.5mm L

1шт.
