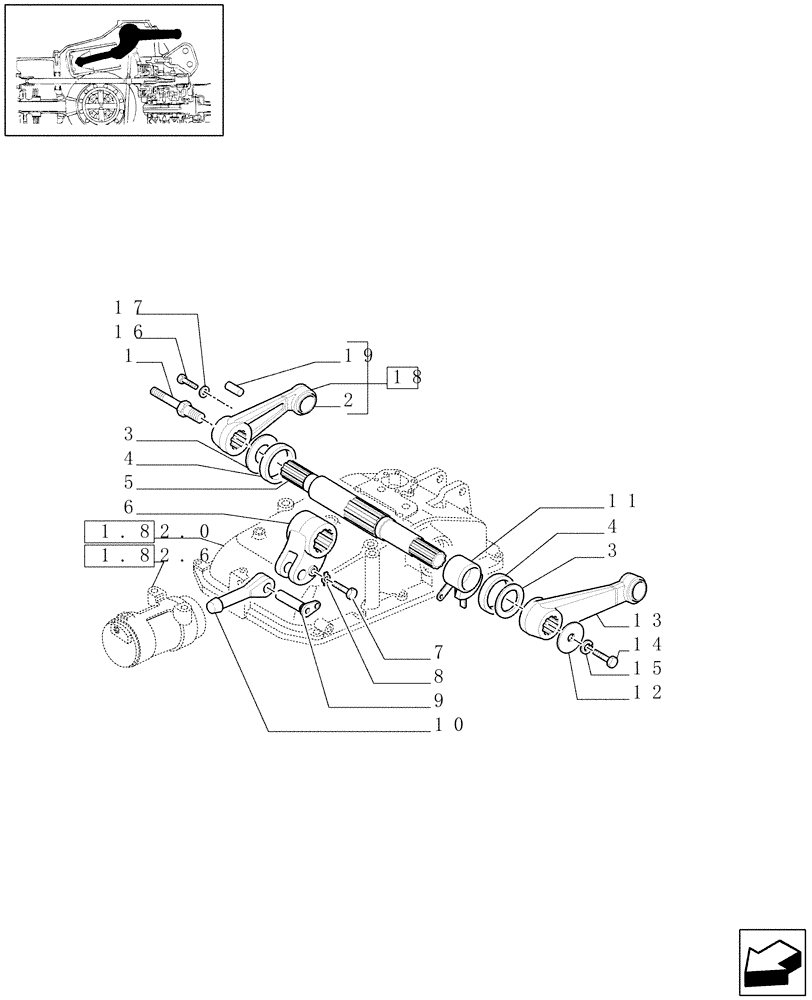

Запчасти Case IH JX1070N (1.82.8) - SHAFT AND IDLER UNIT (07) - HYDRAULIC SYSTEM

1

5176285

BOLT,M10 X 1.25 X 23mm - M14 X 1.25 X 30mm

JX1070N, JX1075N

1шт.

2

5187369

LIFT ARM

ASSY, RH, Serial Range: -C6081

1шт.

2

87753700

LIFT ARM

ASSY, RH, Start Serial: D6081

1шт.

3

5125649

SPACER,47mm ID x 85mm OD x 6mm L

2шт.

4

5125650

OIL SEAL,48mm ID x 65mm OD x 10mm Thk

48x65

2шт.

5

5176508

CONTROL SHAFT,50/43.5mm ID x 54.4/46.5mm OD x 428mm L, 42/60T

1шт.

6

5176633

ARM

1шт.

7

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

8

14198810

LOCKING PLATE,M10

DIA. MM.10

1шт.

9

5176612

PIN,60mm L

1шт.

10

5121221

PISTON ROD,30mm OD x 174mm L

1шт.

11

5176643

RING,48mm ID x 63mm OD x 49.5mm Thk

1шт.

12

5122898

WASHER,15mm ID x 70mm OD x 7mm Thk

2шт.

13

5187370

LIFT ARM

ASSY, LH

1шт.

14

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

1шт.

15

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

1шт.

16

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

JX1060V, JX1070V, JX1075V

1шт.

17

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

JX1060V, JX1070V, JX1075V

1шт.

18

84122688

ARM

RH, JX1070N, JX1075N

1шт.

19

10335010

DOWEL,M5 x 22

1шт.
