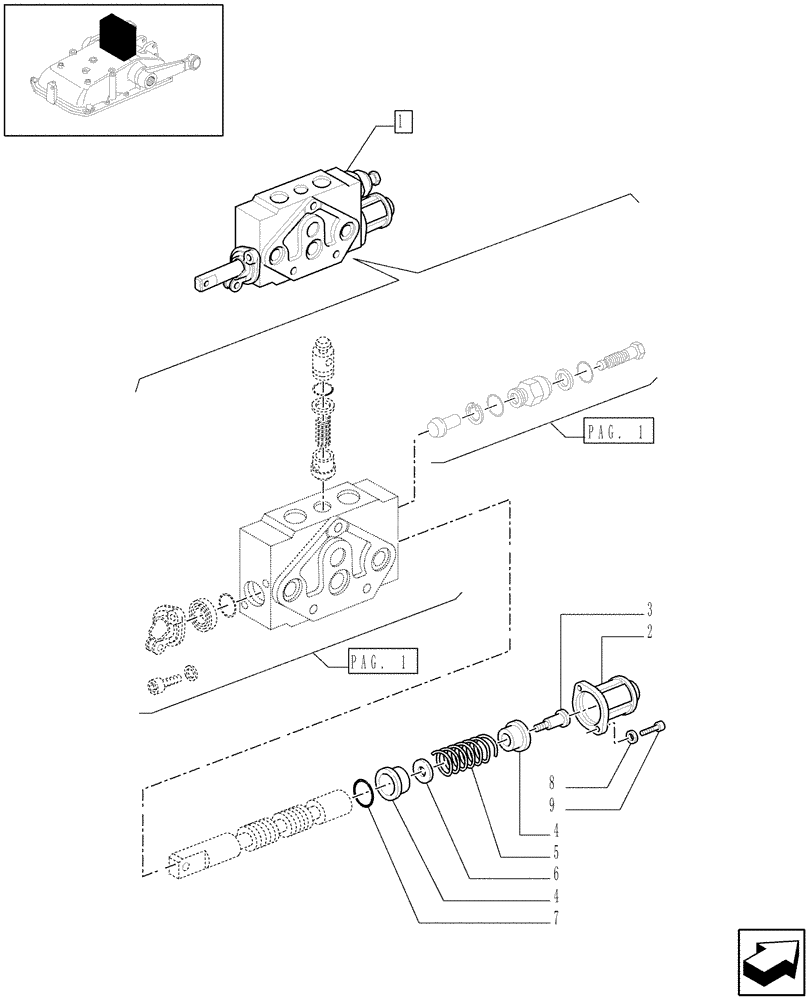

Запчасти Case IH JX1070N (1.82.7/ D[02]) - SIMPLE DOUBLE EFFECT DISTRIBUTOR - BREAKDOWN - D5484 (07) - HYDRAULIC SYSTEM

1

87396848

CONTROL VALVE

Assy.

1шт.

2

5116895

COVER

1шт.

3

5116894

SCREW,1/4" - 20 x 7/8"

1шт.

4

5116891

CUP,10.4mm ID x 27mm OD x 10mm Thk

2шт.

5

5116893

SPRING,Compression, 27mm OD x 43mm L

1шт.

6

5116892

SHIM,10.4mm ID x 16mm OD x 1.5mm Thk

1шт.

7

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

8

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

9

5124338

HEX SOC SCREW,6.35mm OD x 19mm L

2шт.
