Запчасти Case IH JX1070N (1.82.713/01[03]) - (VAR.372-414) TRAILER BRAKE VALVE (ITALY) - PIPES AND SOLENOID VALVES (07) - HYDRAULIC SYSTEM

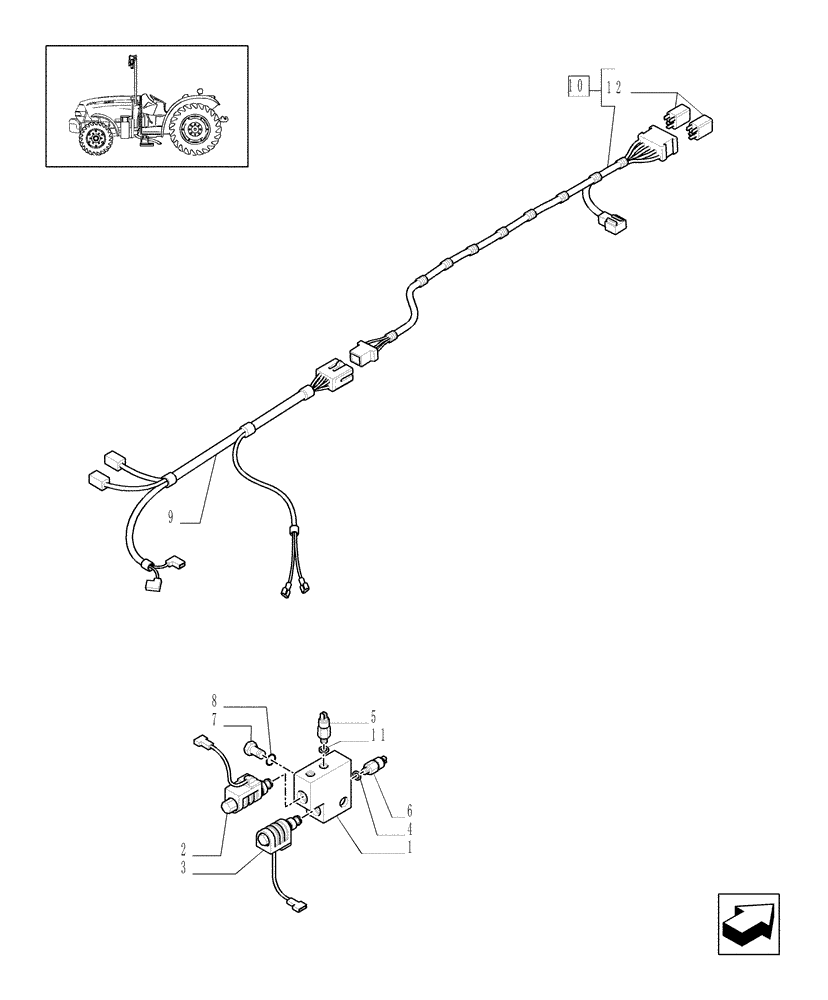

Схема запчастей Case IH JX1070N - (1.82.713/01[03]) - (VAR.372-414) TRAILER BRAKE VALVE (ITALY) - PIPES AND SOLENOID VALVES (07) - HYDRAULIC SYSTEM
7
6
2
8
11
5
9
4
1
12
3
10

Артикул

Название

Примечание

Количество

1

5176996

BLOCK

1шт.

2

5177698

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

1шт.

3

5177699

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

1шт.

4

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

5

5161047

PRESSURE SWITCH

3 Bar

1шт.

6

82030730

SWITCH ASSY

, Serial Range: -C5703

1шт.

6

5157750

PRESSURE SWITCH

, Start Serial: D5703

1шт.

7

5174642

BANJO BOLT,M18 x 1.5 x 57.5mm

1шт.

8

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

9

5188354

ELECTRIC CABLE

1шт.

10

5192249

ELECTRIC CABLE

1шт.

11

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x18x1.5

1шт.

12

5171083

RELAY,12V, 20A, N.O.

12V/20A

2шт.

Выбрано товаров: 13
