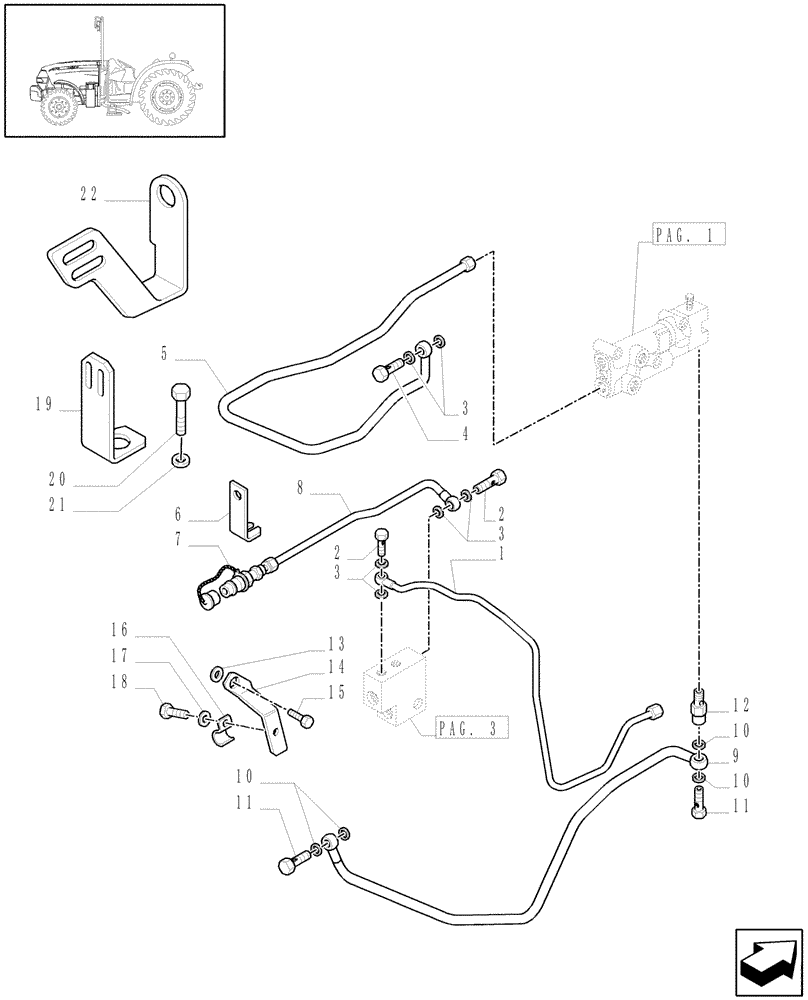

Запчасти Case IH JX1070N (1.82.713/01[02]) - (VAR.372-414) TRAILER BRAKE VALVE (ITALY) - PIPES AND SOLENOID VALVES (07) - HYDRAULIC SYSTEM

1

5188248

RIGID TUBE,12mm OD

1шт.

2

5184345

BANJO BOLT,M18 x 1.5 x 34mm

3шт.

3

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

8шт.

4

5188580

BANJO BOLT,Hex, M12/18 x 1.5

M22

1шт.

5

5188216

RIGID TUBE

1шт.

6

5174628

BRACKET

, Serial Range: -HJC075618

1шт.

7

44015354

QUICK MALE COUPLING

1шт.

8

5174640

RIGID TUBE,12mm OD

1шт.

9

5188530

RIGID TUBE

1шт.

10

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

4шт.

11

10185011

BANJO BOLT,M12 x 1.25 x 23mm

2шт.

12

5113983

BANJO BOLT,Hex, M12 x 1,25 x 44mm L

1шт.

13

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

1шт.

14

5193284

BRACKET

1шт.

15

15980324

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

16

5193286

BRACKET

1шт.

17

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

18

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

19

87564245

BRACKET

, Serial Range: -C5587

1шт.

20

10902114

BOLT,Hex, M6 x 14mm, Cl 5.8, Full Thd

, Start Serial: HJC075619

2шт.

21

11194371

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.4mm Thk

, Start Serial: HJC075619

2шт.

22

87596109

BRACKET

, Start Serial: D5587

1шт.
