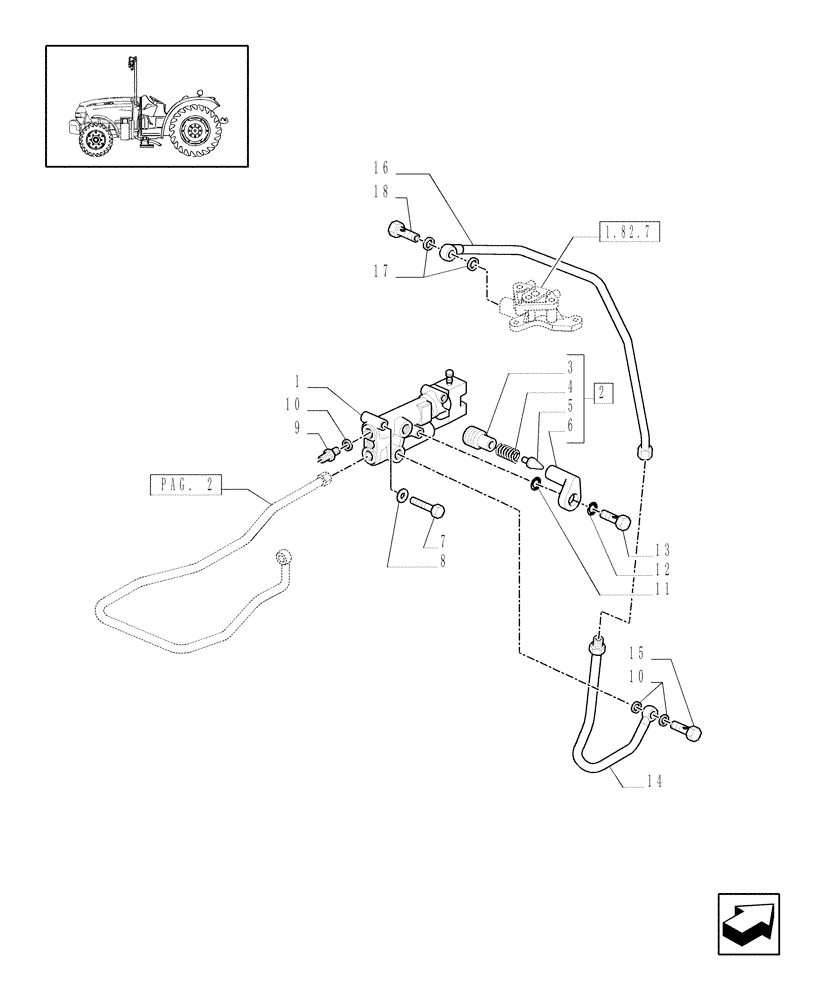

Запчасти Case IH JX1070N (1.82.713/01[01]) - (VAR.372-414) TRAILER BRAKE VALVE (ITALY) - PIPES AND SOLENOID VALVES (07) - HYDRAULIC SYSTEM

1

47132617

HYDRAULIC VALVE

, Serial Range: -C5934

1шт.

1

87758573

HYDRAULIC VALVE

, Start Serial: D5934

1шт.

2

5186151

HYDRAULIC VALVE

1шт.

3

5186281

ADJUSTMENT SCREW

1шт.

4

5157487

SPRING,9.5mm OD x 44mm L

1шт.

5

5187827

GUIDE PIN

1шт.

6

5186148

HYD CONNECTOR,M20 x 1.5 x 99.5mm L

1шт.

7

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

8

10516674

LOCK WASHER,M8

2шт.

9

5158799

HYD CONNECTOR

1шт.

10

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

8шт.

11

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

12

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

13

5168481

BANJO BOLT,M18 x 1.5 x 38mm

1шт.

14

5186146

RIGID TUBE

1шт.

15

5184345

BANJO BOLT,M18 x 1.5 x 34mm

M18x34

3шт.

16

5174620

RIGID TUBE

VAR.372

1шт.

17

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

22.7 x 30 x 2, VAR.372

2шт.

18

5182095

BANJO BOLT,M22 x 1.5 x 47mm

M22x1.5, VAR.372

1шт.
