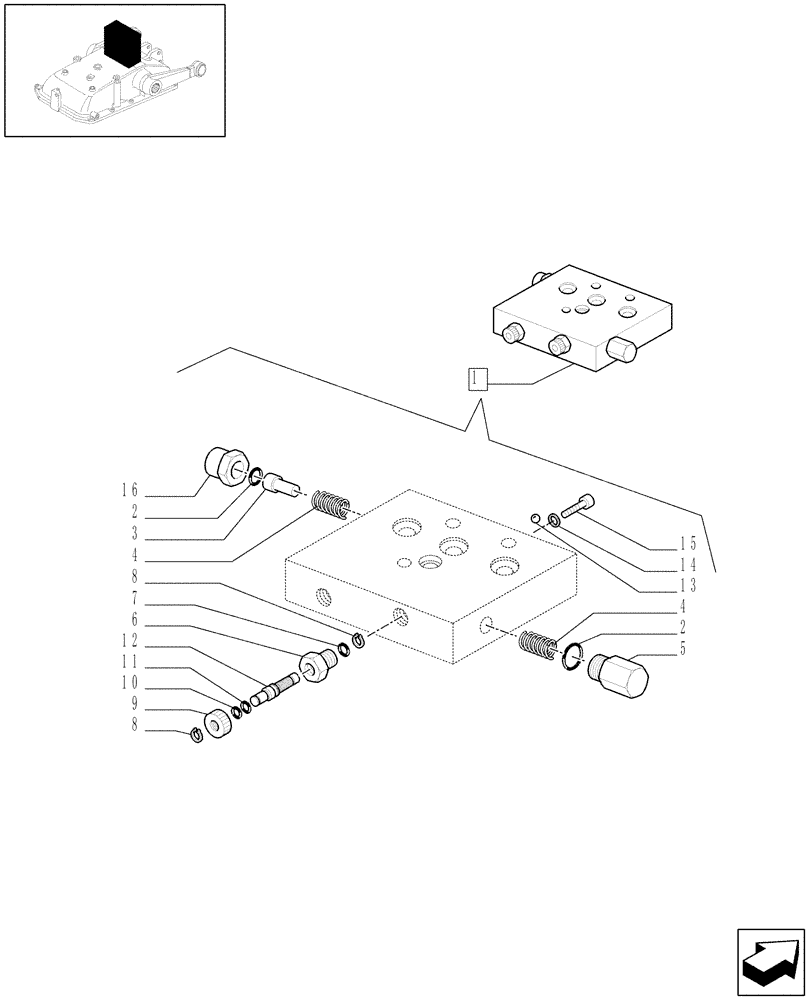

Запчасти Case IH JX1070N (1.82.7/09B) - DOUBLE FLOW DIVIDER - BREAKDOWN - D5484 (07) - HYDRAULIC SYSTEM

1

87538317

CONTROL VALVE

ASSY

1шт.

2

14457581

O-RING,0.799" ID x 0.103" Width

2шт.

3

87342263

PIN

1шт.

4

5153829

SPRING,14.5mm OD x 47.5mm L

2шт.

5

87342267

RETAINER

1шт.

6

5153831

SEAT/SLOT,M12 x 1.25

2шт.

7

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

8

16160976

CIRCLIP,M9

D=10

4шт.

9

5188535

KNOB

2шт.

10

5143560

RING,9.91mm ID x 12.61mm OD x 1.2mm Thk

2шт.

11

14452981

O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro

2шт.

12

87342272

SPOOL

2шт.

13

20063480

BALL,Metal, 9.525mm, Gr 100

1шт.

14

10297860

SEAL,6mm ID x 12mm OD x 1.5mm Thk

1шт.

15

14305324

HEX SOC SCREW,M6 x 20mm, Cl 8.8

1шт.

16

5153830

FLANGE COVER CAP,M24 x 1.5 x 38mm L

1шт.
