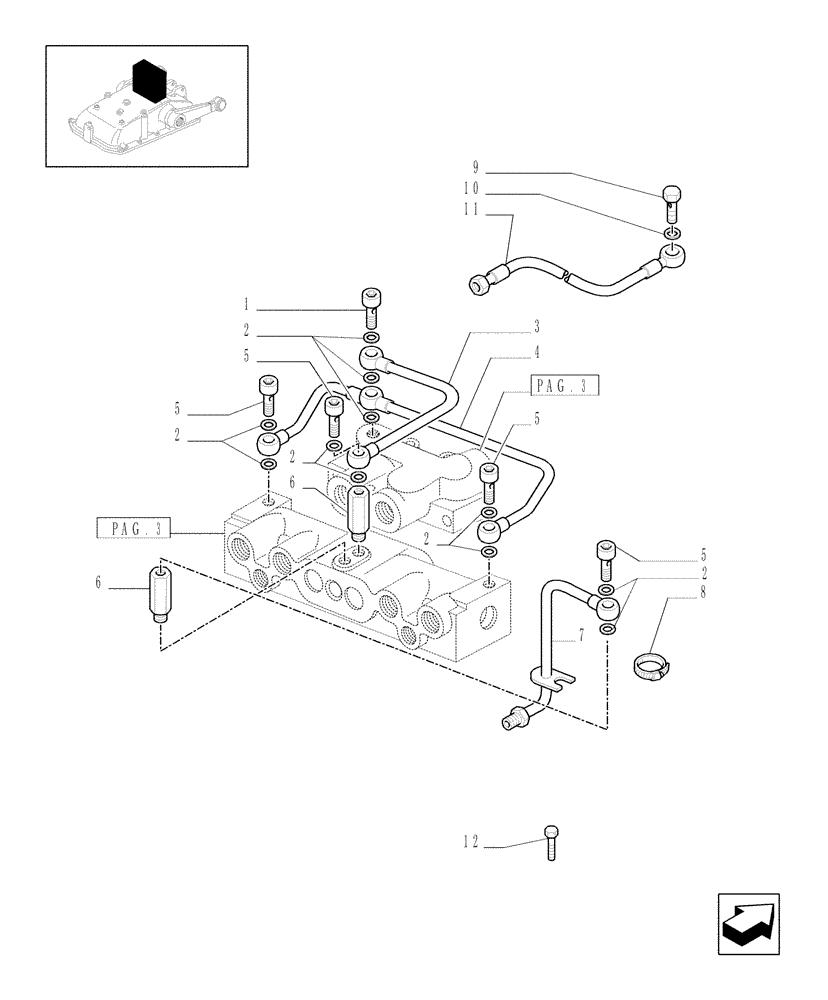

Запчасти Case IH JX1070N (1.82.7/09[04]) - (VAR.088) 3 REAR REMOTE VALVES - PIPES - C5484 (07) - HYDRAULIC SYSTEM

1

5179757

BANJO BOLT

M8x1.25

1шт.

2

10260060

SEALING WASHER,8.2mm ID x 14mm OD x 1mm Thk

8шт.

3

5179545

RIGID TUBE

1шт.

4

5175115

RIGID TUBE

1шт.

5

5175070

BANJO BOLT,M8 x 1.25 x 24mm

M8x1.25

7шт.

6

5179506

PROP,M8 x 1.25

M8

2шт.

7

47131636

RIGID TUBE

Rear Pilot

1шт.

8

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

DIA=20-30

1шт.

9

10185011

BANJO BOLT,M12 x 1.25 x 23mm

1шт.

10

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x18x1.5

2шт.

11

47133401

FLEXIBLE HOSE,6mm ID x 1110mm L

1110 MM

1шт.

Front Pilot Hose

1шт.

12

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.
