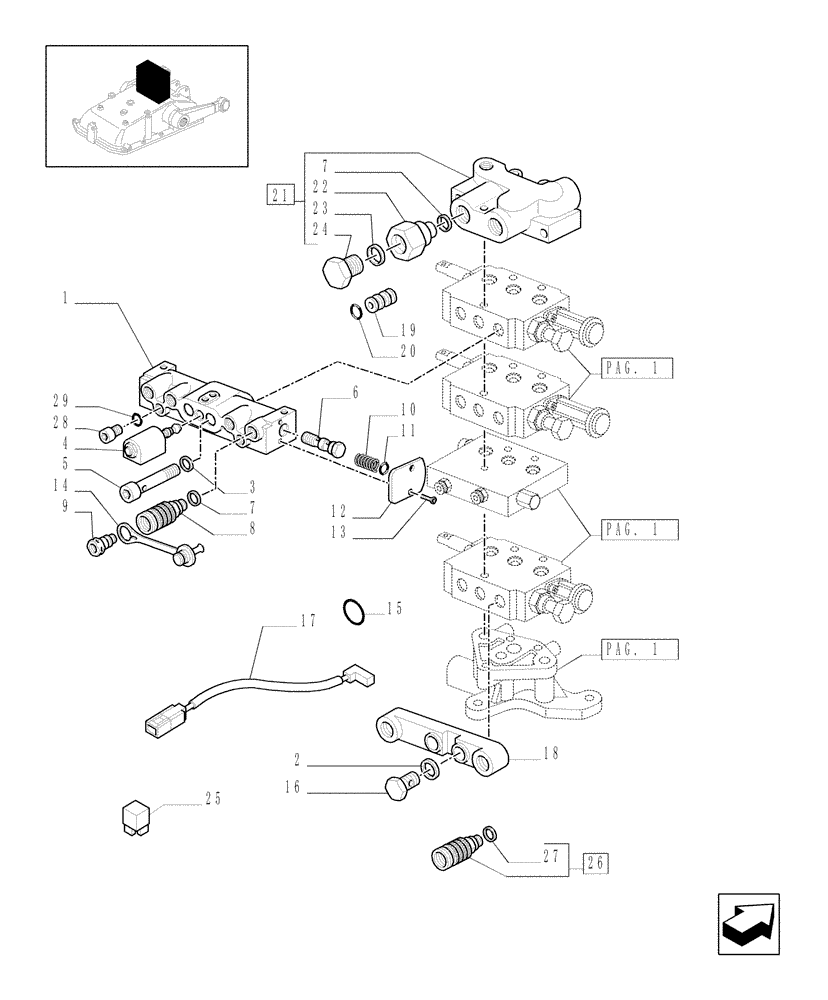

Запчасти Case IH JX1070N (1.82.7/09[03]) - (VAR.088) 3 REAR REMOTE VALVES - QUICK COUPLINGS - C5484 (07) - HYDRAULIC SYSTEM

1

47131020

BODY

Upper, Incl. 3-6,10,12,13,28,29

1шт.

1

47131021

BODY

Lower, Incl. 3-6,10,12,13,28,29

1шт.

2

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

3

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

3

47126244

GASKET KIT

13.59X2.7

1шт.

3

47131201

GASKET KIT

15x2

2шт.

4

5176119

ELECTRO-VALVE,3W - 2p with diode

1шт.

5

47131017

BANJO BOLT,M18 x 1.5 x 67mm

Incl. 3

2шт.

6

47125557

ROD,16mm OD x 73mm L

2шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

8

5179556

COUPLING, QUICK, FEM,Hex, M18 x 1.5 x 63.3mm L

M18x1.5, include p/n 1534623C1

8шт.

1534623C1

SEAL KIT

1шт.

9

5101741

QUICK MALE COUPLING

10шт.

10

47125559

SPRING,Compression, 11.5mm OD x 37mm L

2шт.

11

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

12

47125558

COVER

2шт.

13

14440624

SET SCREW,Hex Soc, M5 x 12mm, Flat Pt

4шт.

14

5186723

DUST CAP,24mm, Black

Black, Std.

10шт.

15

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

16

5168481

BANJO BOLT,M18 x 1.5 x 38mm

M18

2шт.

17

5190544

ELECTRIC CABLE

Blue, 2nd Distrib.

1шт.

17

5190545

ELECTRIC CABLE

Azuregreen, 3rd Distrib.

1шт.

18

5185533

HYD CONNECTOR

1шт.

19

5190887

HYD CONNECTOR,19.5mm L

4шт.

20

5190853

O-RING,0.103" Thk x 0.206" ID, -107, Cl 5, 70 Duro

8шт.

21

5175129

CONTROL VALVE

Assy

1шт.

22

5174043

HYD CONNECTOR,Hex, M22 x 1.5 x 52mm L

1шт.

23

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

90 Duro, .924" ID x .116" Thk

1шт.

24

83957506

PLUG,3/4"

1шт.

25

5171083

RELAY,12V, 20A, N.O.

12V/20A, Enclosure

2шт.

26

5179557

COUPLING, QUICK, FEM

M22 x 1.5, include p/n 1534623C1

2шт.

1534623C1

SEAL KIT

1шт.

27

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

28

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

4шт.

29

14437685

O-RING,9.30mm ID x 2.40mm

4шт.
