Запчасти Case IH JX1070N (1.82.7/09[02]) - (VAR.088) 3 REAR REMOTE VALVES - PIPES AND RINGS - C5484 (07) - HYDRAULIC SYSTEM

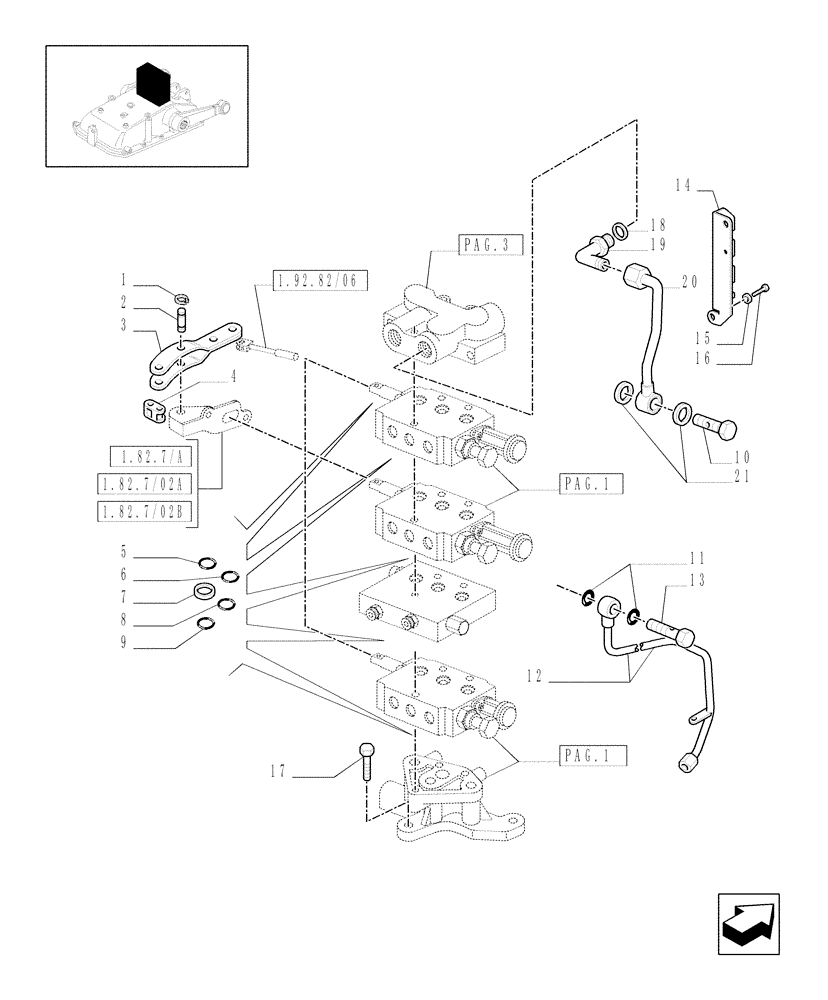

Схема запчастей Case IH JX1070N - (1.82.7/09[02]) - (VAR.088) 3 REAR REMOTE VALVES - PIPES AND RINGS - C5484 (07) - HYDRAULIC SYSTEM
10
3
13
g.1
a
20
19
p
g.1
16
11
1.92.82/06
p
21
5
4
1.82.7/02b
8
14
1.82.7/a
a
12
a
1
2
6
1.82.7/02a
9
18
g.3
15
p
17
7

Артикул

Название

Примечание

Количество

1

11087776

CIRCLIP,Ext., M6, BLO

3шт.

2

5172456

PIN,6mm OD x 20mm L

3шт.

3

5178877

CLEVIS

3шт.

4

5116896

LINK,19.05mm Pitch

3шт.

5

5180283

RING,16mm ID x 18.5mm OD x 2.1mm Thk

D=18.72

15шт.

6

5146467

RING,19.2mm ID x 20.2mm OD x 2.3mm Thk

D=19.2

5шт.

7

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

D=24

5шт.

8

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

5шт.

9

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

15шт.

10

5184345

BANJO BOLT,M18 x 1.5 x 34mm

18x34

1шт.

11

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

22.7 x 30 x 2

2шт.

12

5186138

RIGID TUBE

1шт.

13

5182095

BANJO BOLT,M22 x 1.5 x 47mm

M22x1.5

1шт.

14

87344408

BRACKET

1шт.

15

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

16

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

17

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

18

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

19

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

1шт.

20

87343055

RIGID TUBE,251.5, 68 mm L

1шт.

21

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

Выбрано товаров: 21
