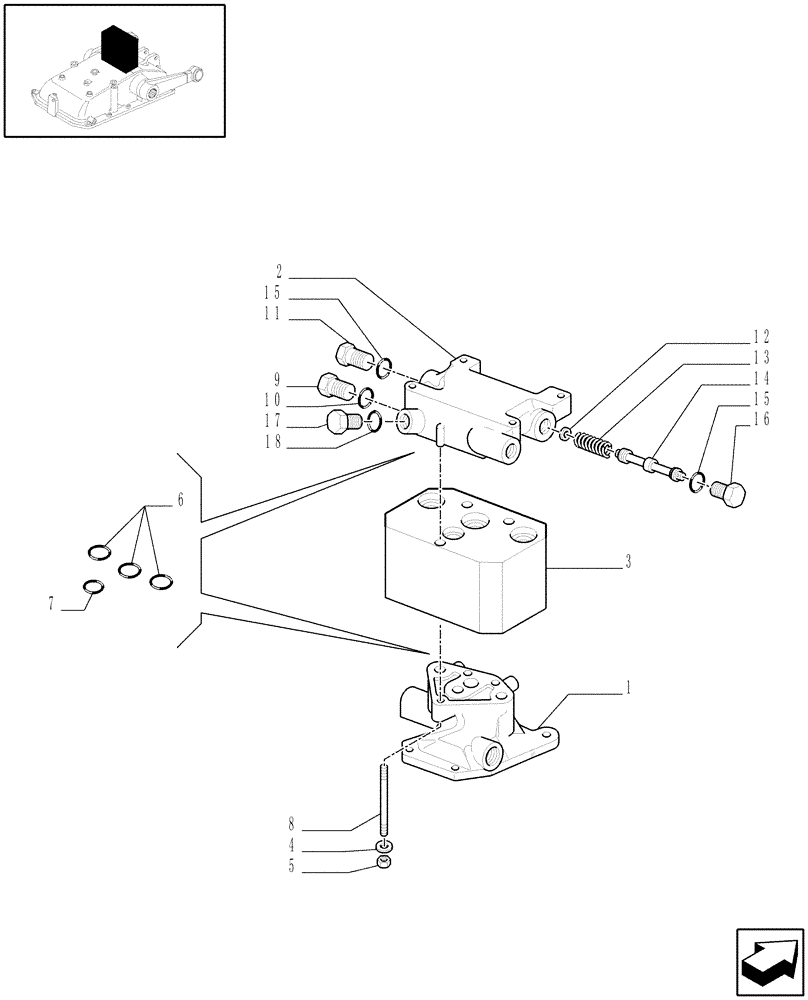

Запчасти Case IH JX1070N (1.82.7/08[02]) - (VAR.541) L/REMOTE VALVES FOR ELECTRONIC LIFT - CONTROL VALVE, RINGS - D5484 (07) - HYDRAULIC SYSTEM

1

5176480

FLANGE

1шт.

2

87374218

FLANGE

Incl. 9-18

2шт.

3

87315508

SPACER

1шт.

4

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

5

5116857

NUT,3/8" - 24

3/8"

3шт.

6

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

6шт.

7

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING DIA=19.2

3шт.

8

5150104

STUD,3/8" - 24 x 5"

3шт.

9

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

10

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

11

5173857

PLUG,Hex, M27 x 2

1шт.

12

5167122

VALVE

1шт.

13

83948862

SPRING,12.3mm OD x 76.2mm L

1шт.

14

83999793

HYDRAULIC VALVE

1шт.

15

14438185

O-RING,24mm ID x 3mm

1шт.

16

5167123

PLUG,7/16" - 20

1шт.

17

83957506

PLUG,3/4"

1шт.

18

81826567

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
