Запчасти Case IH JX1070N (1.82.7/05[10]) - (VAR.419/1) 3 REM. VALVES FOR ELECTRONIC LIFTER W/HYDRAULIC DIVIDER - QUICK COUPLINGS - D5484 (07) - HYDRAULIC SYSTEM

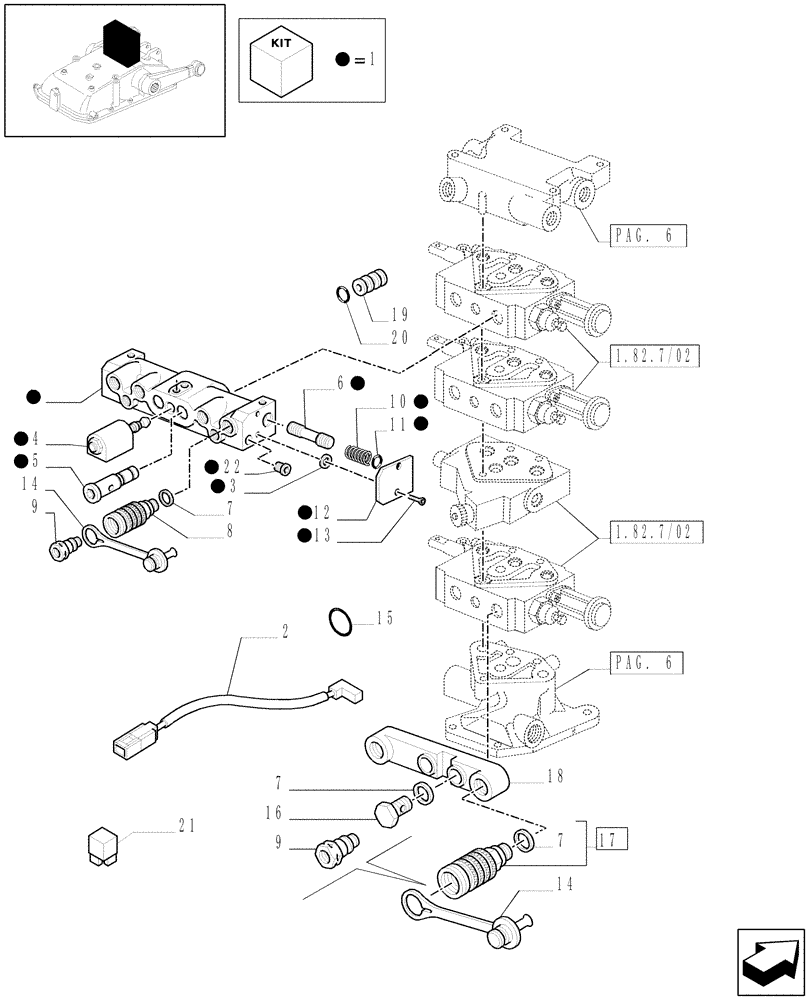

Схема запчастей Case IH JX1070N - (1.82.7/05[10]) - (VAR.419/1) 3 REM. VALVES FOR ELECTRONIC LIFTER W/HYDRAULIC DIVIDER - QUICK COUPLINGS - D5484 (07) - HYDRAULIC SYSTEM
4
12
2
14
1
1
1
21
6
9
5
3
7
7
1
14
15
1
11
13
1
1
9
20
17
pag. 6
1.82.7/02
8
pag. 6
7
1
1
22
16
1
19
10
1
18
1.82.7/02
1

Артикул

Название

Примечание

Количество

1

47131020

BODY

Upper

1шт.

1

47131021

BODY

Lower

1шт.

2

5190544

ELECTRIC CABLE

Blue, 2nd Distrib.

1шт.

2

5190545

ELECTRIC CABLE

Azuregreen, 3rd Distrib.

1шт.

3

14437685

O-RING,9.30mm ID x 2.40mm

2шт.

4

5176119

ELECTRO-VALVE,3W - 2p with diode

1шт.

5

47131017

BANJO BOLT,M18 x 1.5 x 67mm

Incl. Ref. 27

2шт.

6

47125557

ROD,16mm OD x 73mm L

2шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

8

5179557

COUPLING, QUICK, FEM

M18, include p/n 1534623C1

2шт.

1534623C1

SEAL KIT

1шт.

9

5101741

QUICK MALE COUPLING

10шт.

10

47125559

SPRING,Compression, 11.5mm OD x 37mm L

2шт.

9

5101741

QUICK MALE COUPLING

10шт.

11

14457481

O-RING,0.737" ID x 0.103" Width

2шт.

12

47125558

COVER

2шт.

13

14440624

SET SCREW,Hex Soc, M5 x 12mm, Flat Pt

4шт.

14

5186723

DUST CAP,24mm, Black

Black, Std.

10шт.

15

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

16

5168481

BANJO BOLT,M18 x 1.5 x 38mm

2шт.

17

5179556

COUPLING, QUICK, FEM,Hex, M18 x 1.5 x 63.3mm L

L=63.3 MM, include p/n 1534623C1

8шт.

1534623C1

SEAL KIT

1шт.

18

5185533

HYD CONNECTOR

1шт.

19

5190887

HYD CONNECTOR,19.5mm L

4шт.

20

5190853

O-RING,0.103" Thk x 0.206" ID, -107, Cl 5, 70 Duro

8шт.

21

5171083

RELAY,12V, 20A, N.O.

12V/20A, Enclosure

2шт.

22

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

4шт.

Выбрано товаров: 27
