Запчасти Case IH JX1070N (1.82.7/04[03]) - (VAR.419) THREE REMOTE VALVES FOR ELECTRONIC LIFT - VALVE AND FLANGE - D5484 (07) - HYDRAULIC SYSTEM

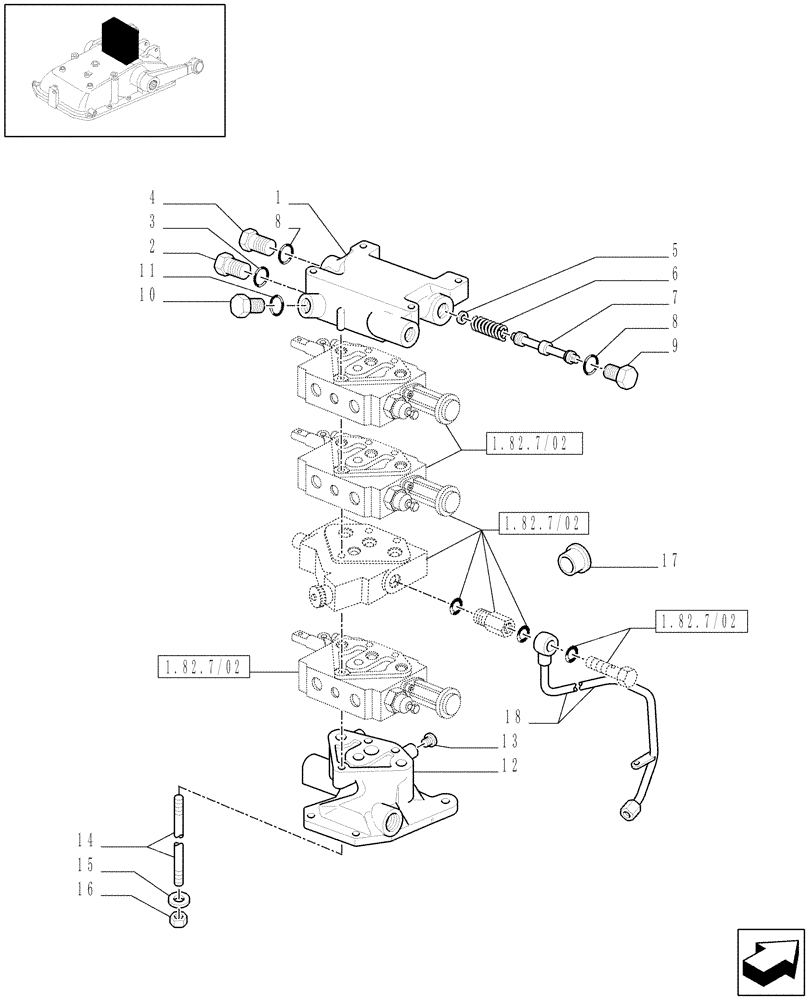

Схема запчастей Case IH JX1070N - (1.82.7/04[03]) - (VAR.419) THREE REMOTE VALVES FOR ELECTRONIC LIFT - VALVE AND FLANGE - D5484 (07) - HYDRAULIC SYSTEM
7
16
1
12
1.82.7/02
14
17
3
1.82.7/02
10
9
4
13
8
11
15
18
1.82.7/02
2
5
8
6
1.82.7/02

Артикул

Название

Примечание

Количество

1

87374218

FLANGE

Incl. Ref. 2 To 11

1шт.

2

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

3

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

4

5173857

PLUG,Hex, M27 x 2

1шт.

5

5167122

VALVE

1шт.

6

83948862

SPRING,12.3mm OD x 76.2mm L

1шт.

7

83999793

HYDRAULIC VALVE

1шт.

8

14438185

O-RING,24mm ID x 3mm

1шт.

9

5167123

PLUG,7/16" - 20

1шт.

10

83957506

PLUG,3/4"

1шт.

11

81826567

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

90 Duro

1шт.

12

5176480

FLANGE

1шт.

13

10269650

PLUG

1шт.

14

5151505

THREADED ROD,3/8" - 24 x 8-1/4"

3шт.

15

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

16

5116857

NUT,3/8" - 24

6шт.

17

5182438

PLUG,14mm ID x 19mm OD x 12mm Thk

2шт.

18

5186139

RIGID TUBE

1шт.

Выбрано товаров: 18
