(1.82.7/03[05]) - (VAR.390/1-399-498-498/1) 3 REM VALVES W/FLOW-RATE REG. AND HYD. DIVIDER - REMOTE VALVES - D5484

Запчасти Case IH JX1070N (1.82.7/03[05]) - (VAR.390/1-399-498-498/1) 3 REM VALVES W/FLOW-RATE REG. AND HYD. DIVIDER - REMOTE VALVES - D5484 (07) - HYDRAULIC SYSTEM

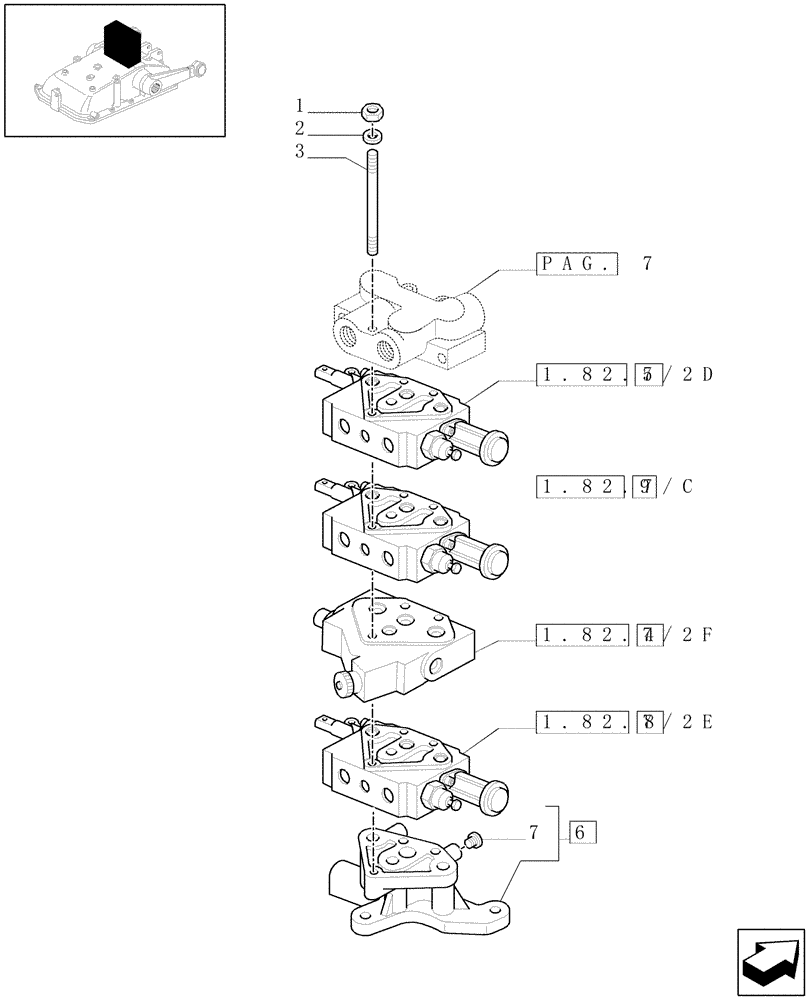

Схема запчастей Case IH JX1070N - (1.82.7/03[05]) - (VAR.390/1-399-498-498/1) 3 REM VALVES W/FLOW-RATE REG. AND HYD. DIVIDER - REMOTE VALVES - D5484 (07) - HYDRAULIC SYSTEM
7
1
3
4
1.82.7/2f
5
9
pag. 7
1.82.7/2d
1.82.7/2e
6
8
1.82.7/c
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5116857

NUT,3/8" - 24

3/8"

6шт.

2

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

3

5149336

THREADED ROD,3/8" - 24 x 10"

3шт.

4

87397107

CONTROL VALVE

Assy.

1шт.

5

87396859

CONTROL VALVE

Assy., W/Float

1шт.

6

5176800

FLANGE

1шт.

7

10269650

PLUG

M16

1шт.

8

87396881

CONTROL VALVE

Assy., S/D W/Autom.Kick-Out

1шт.

9

87396877

CONTROL VALVE

Assy., S/D W/Autom.Kick-Out & Float

1шт.

Выбрано товаров: 9
