Запчасти Case IH JX1070N (1.82.7/02[04]) - (VAR.390-498/2) THREE REMOTE VALVES & FLOW-RATE REGULATOR - VALVE AND FLANGE - D5484 (07) - HYDRAULIC SYSTEM

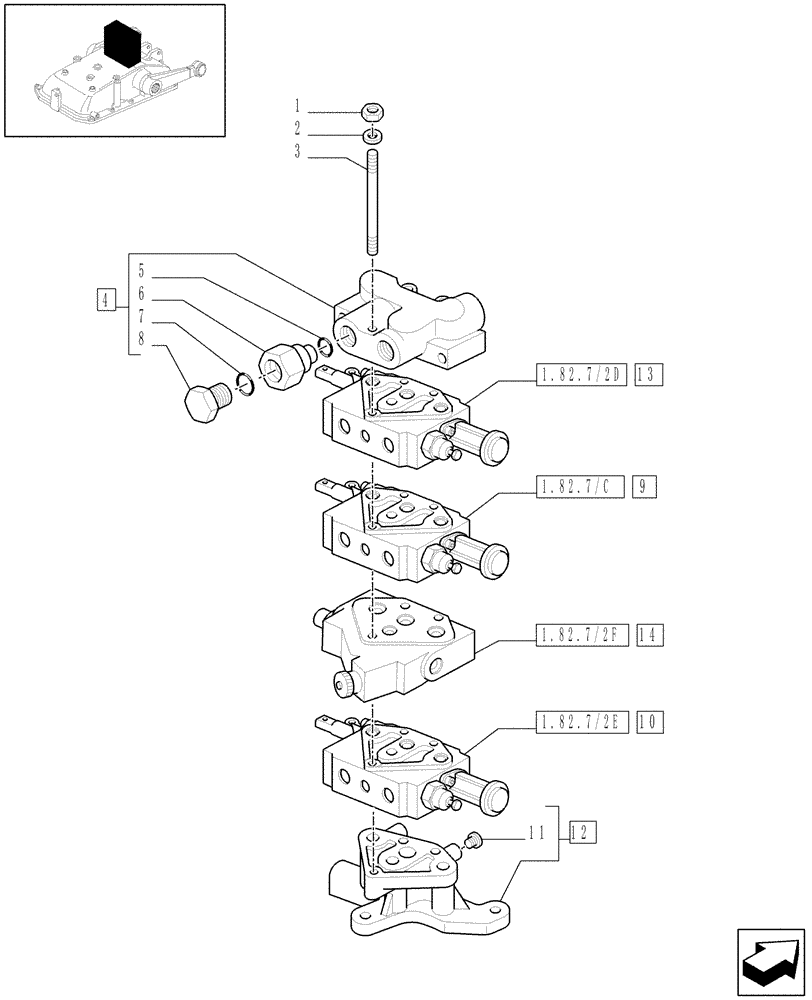

Схема запчастей Case IH JX1070N - (1.82.7/02[04]) - (VAR.390-498/2) THREE REMOTE VALVES & FLOW-RATE REGULATOR - VALVE AND FLANGE - D5484 (07) - HYDRAULIC SYSTEM
12
1.82.7/2d
4
9
5
7
1.82.7/2f
3
8
6
11
1.82.7/2e
14
1
13
10
2
1.82.7/c

Артикул

Название

Примечание

Количество

1

5116857

NUT,3/8" - 24

3/8"

6шт.

2

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

3

5149336

THREADED ROD,3/8" - 24 x 10"

3шт.

4

87397264

SUPPORT

Assy.

1шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

6

5174043

HYD CONNECTOR,Hex, M22 x 1.5 x 52mm L

1шт.

7

81826567

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

90 Duro

1шт.

8

83957506

PLUG,3/4"

1шт.

9

87396877

CONTROL VALVE

Assy., S/D W/Autom.Kick-Out & Float

1шт.

10

87396881

CONTROL VALVE

Assy., S/D W/Autom.Kick-Out

1шт.

11

10269650

PLUG

M=16

1шт.

12

5176800

FLANGE

1шт.

13

87396859

CONTROL VALVE

Assy., W/Float

1шт.

14

87397107

CONTROL VALVE

Assy.

1шт.

Выбрано товаров: 14
