(1.82.7/01[01]) - (VAR.821-832) ELECTRONIC LIFT (OPEN CENTER) - EXTRA EXTERNAL CONTROL VALVE AND PIPES, RINGS AND FORK - C5484

Запчасти Case IH JX1070N (1.82.7/01[01]) - (VAR.821-832) ELECTRONIC LIFT (OPEN CENTER) - EXTRA EXTERNAL CONTROL VALVE AND PIPES, RINGS AND FORK - C5484 (07) - HYDRAULIC SYSTEM

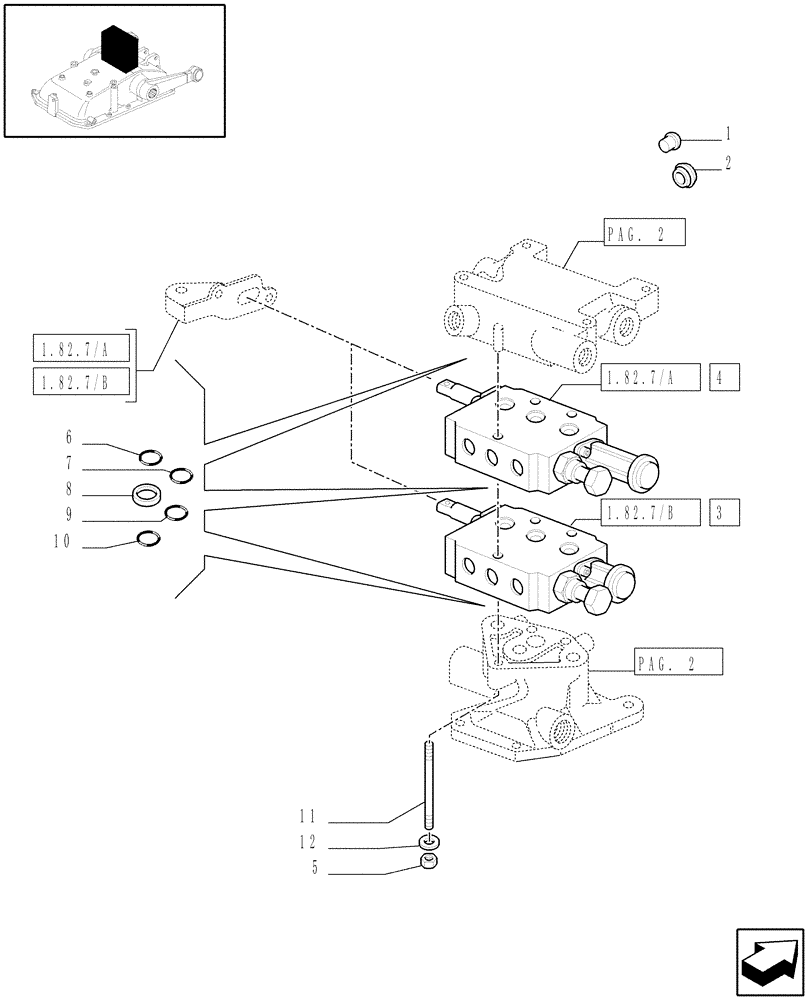

Схема запчастей Case IH JX1070N - (1.82.7/01[01]) - (VAR.821-832) ELECTRONIC LIFT (OPEN CENTER) - EXTRA EXTERNAL CONTROL VALVE AND PIPES, RINGS AND FORK - C5484 (07) - HYDRAULIC SYSTEM
12
2
11
6
5
8
4
pag. 2
1.82.7/b
9
pag. 2
3
1.82.7/b
10
7
1.82.7/a
1.82.7/a
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5154178

PLUG,22mm

DIA=22

1шт.

2

5182438

PLUG,14mm ID x 19mm OD x 12mm Thk

DIA=14

2шт.

3

5161780

CONTROL VALVE

Assy.

1шт.

4

5186854

CONTROL VALVE

Assy., W/Float & Kick-Out

1шт.

5

5116857

NUT,3/8" - 24

3/8"

3шт.

6

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

DIA=24

3шт.

7

5146467

RING,19.2mm ID x 20.2mm OD x 2.3mm Thk

DIA=19.2

6шт.

8

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

3шт.

9

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

9шт.

10

5180283

RING,16mm ID x 18.5mm OD x 2.1mm Thk

DIA=18.72

9шт.

11

5150104

STUD,3/8" - 24 x 5"

3шт.

12

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.
