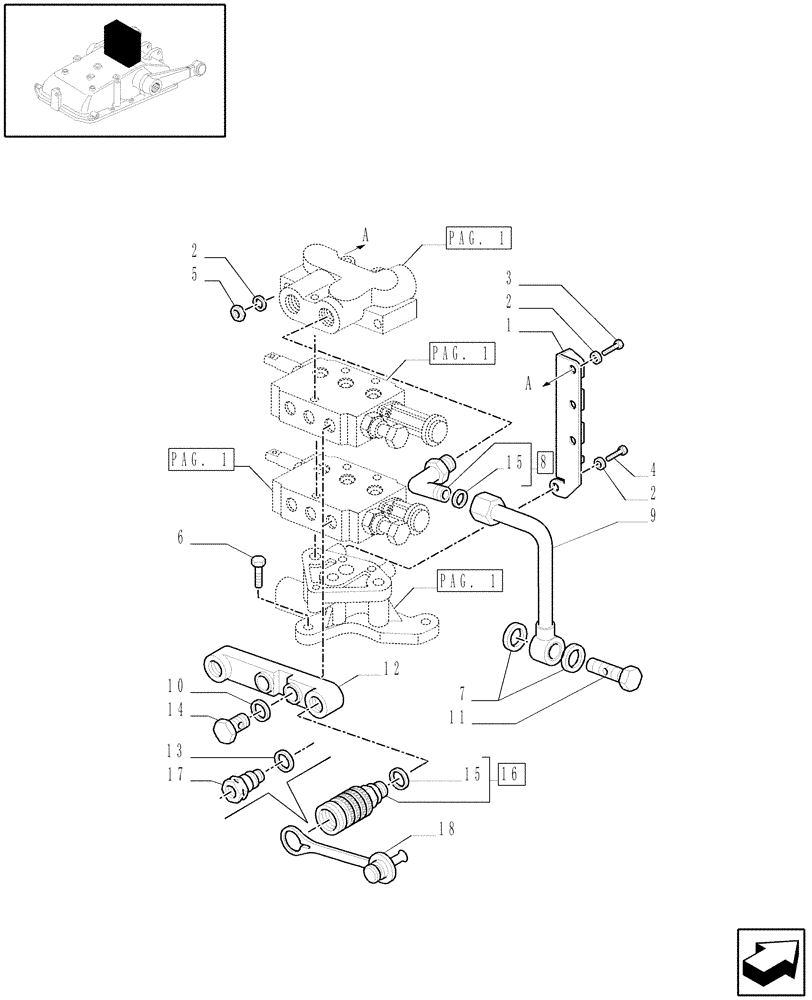

Запчасти Case IH JX1070N (1.82.7[03]) - EXTRA EXTERNAL CONTROL VALVES AND PIPES - C5484 (07) - HYDRAULIC SYSTEM

1

5178435

BRACKET

1шт.

2

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

3

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

2шт.

4

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

12164714

NUT,M10 x 1.25, Cl 8

2шт.

6

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

7

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

8

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

DIA. MM.22

1шт.

9

5173694

RIGID TUBE

1шт.

10

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

6шт.

11

5184345

BANJO BOLT,M18 x 1.5 x 34mm

M18x34

1шт.

12

5185533

HYD CONNECTOR

2шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

14

5168481

BANJO BOLT,M18 x 1.5 x 38mm

M18

4шт.

15

14438085

O-RING,19.3mm ID x 2.4mm

5шт.

16

5179557

COUPLING, QUICK, FEM

include p/n 1534623C1

4шт.

1534623C1

SEAL KIT

1шт.

17

5101741

QUICK MALE COUPLING

4шт.

18

5179576

PLUG,24mm, Green

Green, Std.

2шт.

18

5179577

PLUG,24mm, Blu

Blue, Std.

2шт.

18

5186723

DUST CAP,24mm, Black

Black, Std.

2шт.
