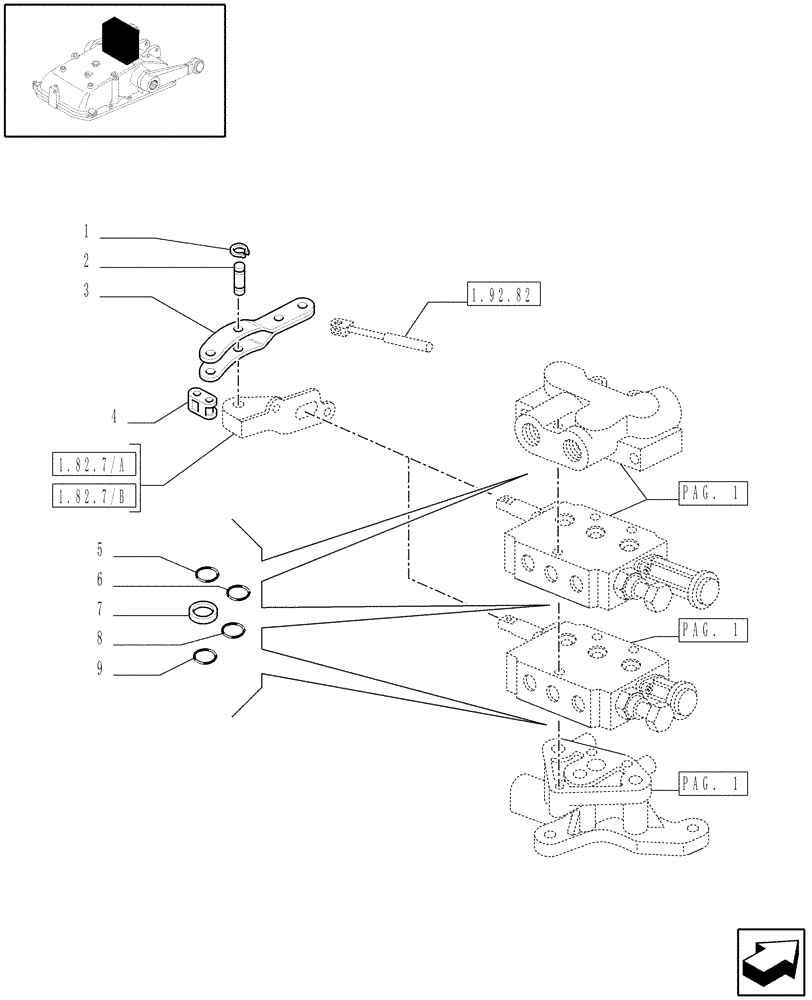

Запчасти Case IH JX1070N (1.82.7[02]) - EXTRA EXTERNAL CONTROL VALVES AND PIPES - C5484 (07) - HYDRAULIC SYSTEM

1

11087776

CIRCLIP,Ext., M6, BLO

2шт.

2

5172456

PIN,6mm OD x 20mm L

2шт.

3

5178877

CLEVIS

2шт.

4

5116896

LINK,19.05mm Pitch

2шт.

5

5180283

RING,16mm ID x 18.5mm OD x 2.1mm Thk

DIA. MM.18.72

9шт.

6

5146467

RING,19.2mm ID x 20.2mm OD x 2.3mm Thk

DIA. MM.19.2

3шт.

7

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

DIA. MM.24

3шт.

8

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

3шт.

9

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

9шт.
