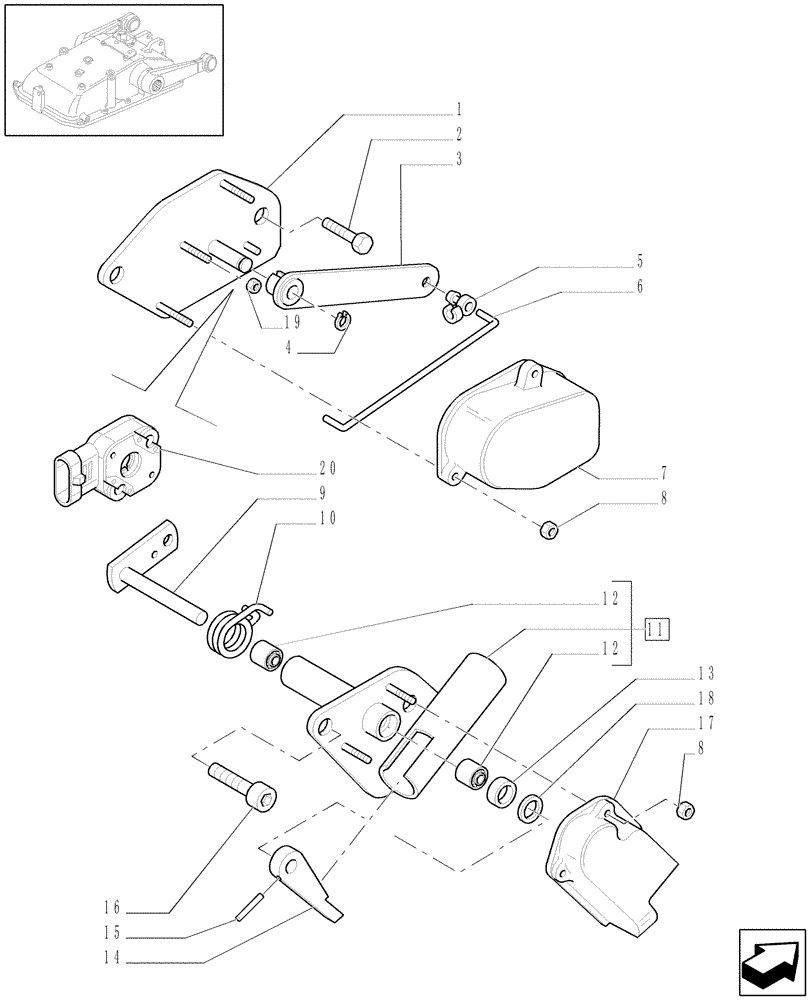

Запчасти Case IH JX1070N (1.82.5/01) - (VAR.821-832) ELECTRONIC LIFT (OPEN CENTER) - LIFT CONTROL (07) - HYDRAULIC SYSTEM

1

47132772

SUPPORT

1шт.

2

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

2шт.

3

5173906

LEVER

1шт.

4

11087976

CIRCLIP,Ext., M8, BLO

1шт.

5

89821714

CLIP

2шт.

6

5173914

TIE-ROD,4mm OD x 95.5mm L

1шт.

7

5173934

GUARD

1шт.

8

10794014

NUT,M4, Cl 8

4шт.

9

5175901

LEVER

1шт.

10

5175860

SPRING,28mm OD x 12mm L

1шт.

11

5175311

SUPPORT

ASSY

1шт.

12

5109988

ROLLER BEARING,Needle, 10mm ID x 16mm OD x 12mm W

2шт.

13

5105895

SEAL,10mm ID x 18mm OD x 6mm Thk

1шт.

14

5173933

LEVER

1шт.

15

14162074

LOCK PIN,M3 x 22, Slotted

1шт.

16

14360121

HEX SOC SCREW,M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

17

5175781

GUARD

1шт.

18

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

19

15896414

NUT,M5, Cl 8

1шт.

20

87543715

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor, Serial Range: -C5735

1шт.

20

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor, Start Serial: D5735

1шт.
