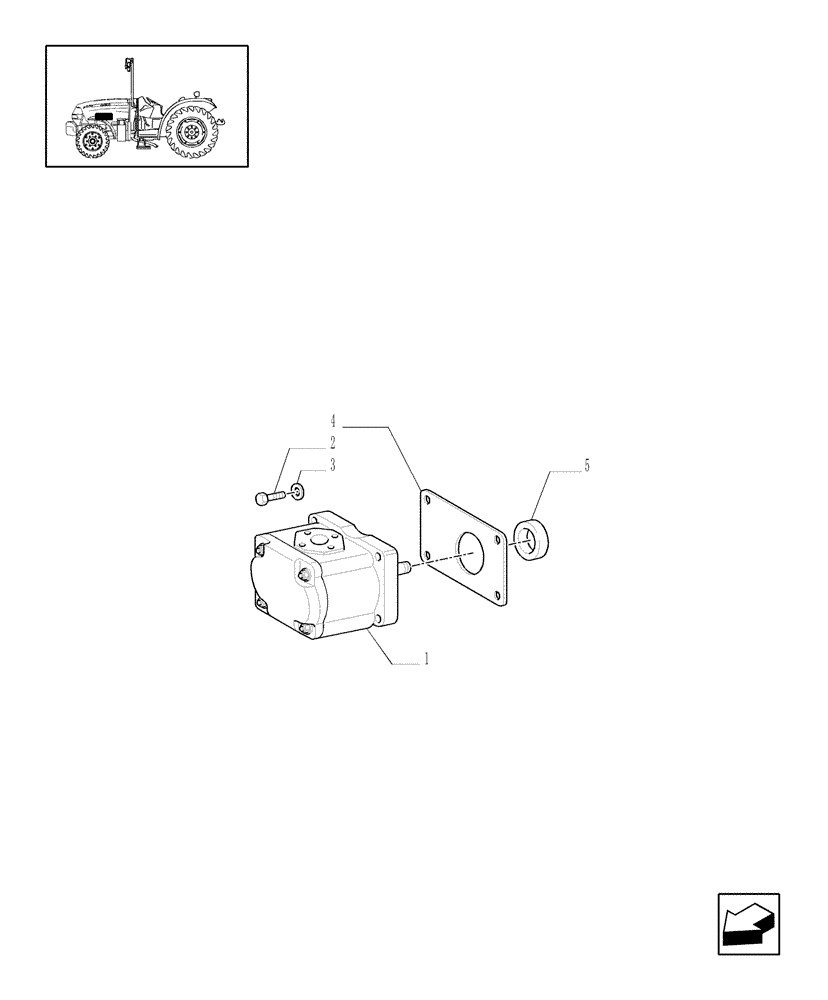

Запчасти Case IH JX1070N (1.82.3/01) - (VAR.271) HI-LO - LIFTER PUMP (07) - HYDRAULIC SYSTEM

1

5186280

HYDRAULIC PUMP,25.7 CC

Assy.

1шт.

5186280R

REMAN-HYD PUMP

JX1070N, JX1075N, Both (5/04-)

1шт.

5186280C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

14305524

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

JX1070N, JX1075N

4шт.

2

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

4

5186310

SEAL

1шт.

5

5118568

CENTERING RING

Centering

1шт.
