(1.82.1/01) - (VAR.821-832) ELECTRONIC LIFT (OPEN CENTER) - PIPES

Запчасти Case IH JX1070N (1.82.1/01) - (VAR.821-832) ELECTRONIC LIFT (OPEN CENTER) - PIPES (07) - HYDRAULIC SYSTEM

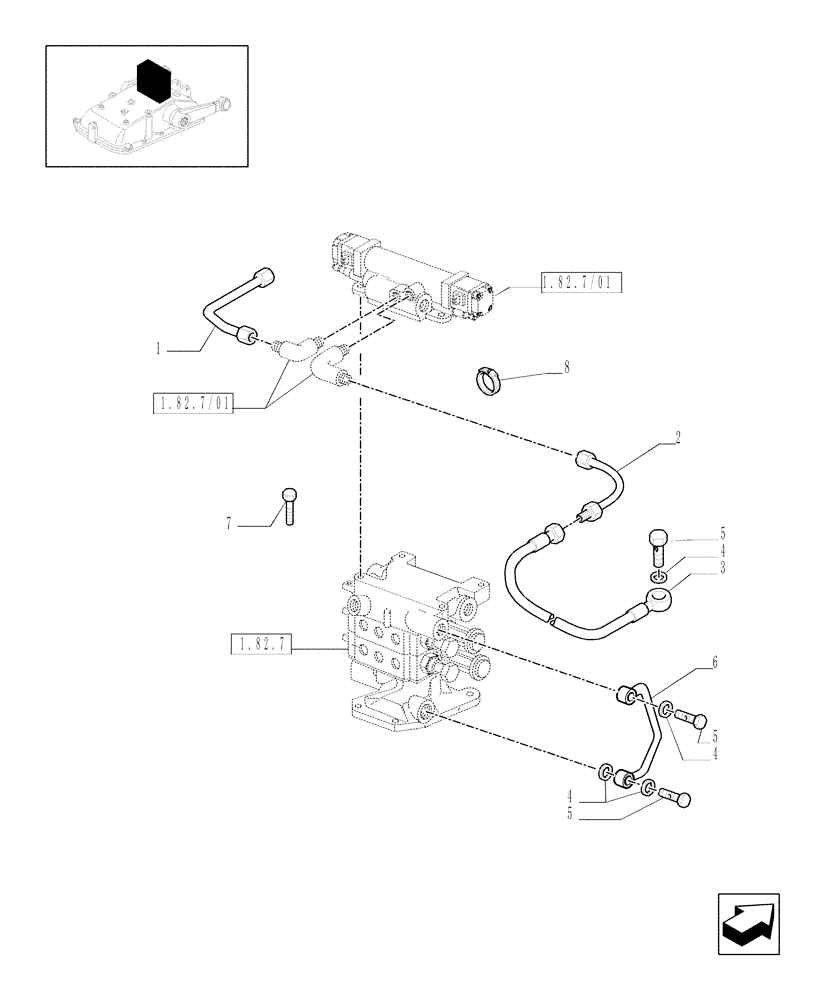

Схема запчастей Case IH JX1070N - (1.82.1/01) - (VAR.821-832) ELECTRONIC LIFT (OPEN CENTER) - PIPES (07) - HYDRAULIC SYSTEM
4
6
1.82.7/01
3
4
4
1.82.7
7
2
8
5
1
1.82.7/01
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5174040

RIGID TUBE

DIA=6

1шт.

2

47131635

RIGID TUBE

1шт.

3

47133401

FLEXIBLE HOSE,6mm ID x 1110mm L

1110 MM

1шт.

Front Pilot Hose

1шт.

4

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x18

4шт.

5

10185011

BANJO BOLT,M12 x 1.25 x 23mm

3шт.

6

5174038

RIGID TUBE

Cap, HH, CL 8.8, M6x1x14

1шт.

7

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

8

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

DIA=30-45

1шт.
