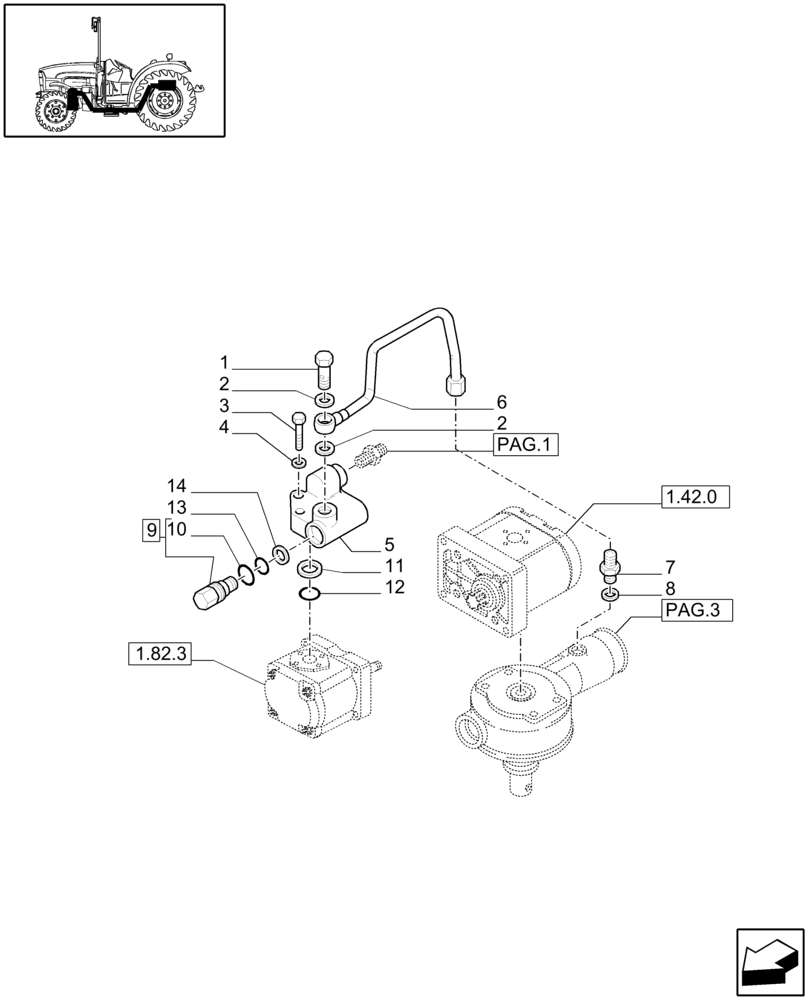

Запчасти Case IH JX1070N (1.82.1[04]) - LIFTER, LINES (07) - HYDRAULIC SYSTEM

1

5184345

BANJO BOLT,M18 x 1.5 x 34mm

1шт.

2

4858609

WASHER,Brass

16x22

2шт.

3

14306021

HEX SOC SCREW,M6 x 50mm, Cl 8.8

3шт.

4

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

3шт.

5

5189784

HYD CONNECTOR

1шт.

6

5190786

RIGID TUBE

1шт.

7

5158806

HYD CONNECTOR,7/8-14 UNF, M18 x 1.5

1шт.

8

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

9

5191767

HYDRAULIC VALVE,M28 x 1.5

1шт.

10

14453981

O-RING,0.989" ID x 0.07" Width

2шт.

11

44015841

BACK-UP RING,19mm ID x 20mm OD x 2.05mm Thk

1шт.

12

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

13

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

14

10263360

SEAL,20.3mm ID x 26mm OD x 1mm Thk

1шт.
