Запчасти Case IH JX1070N (1.82.1[03]) - LIFTER, LINES (07) - HYDRAULIC SYSTEM

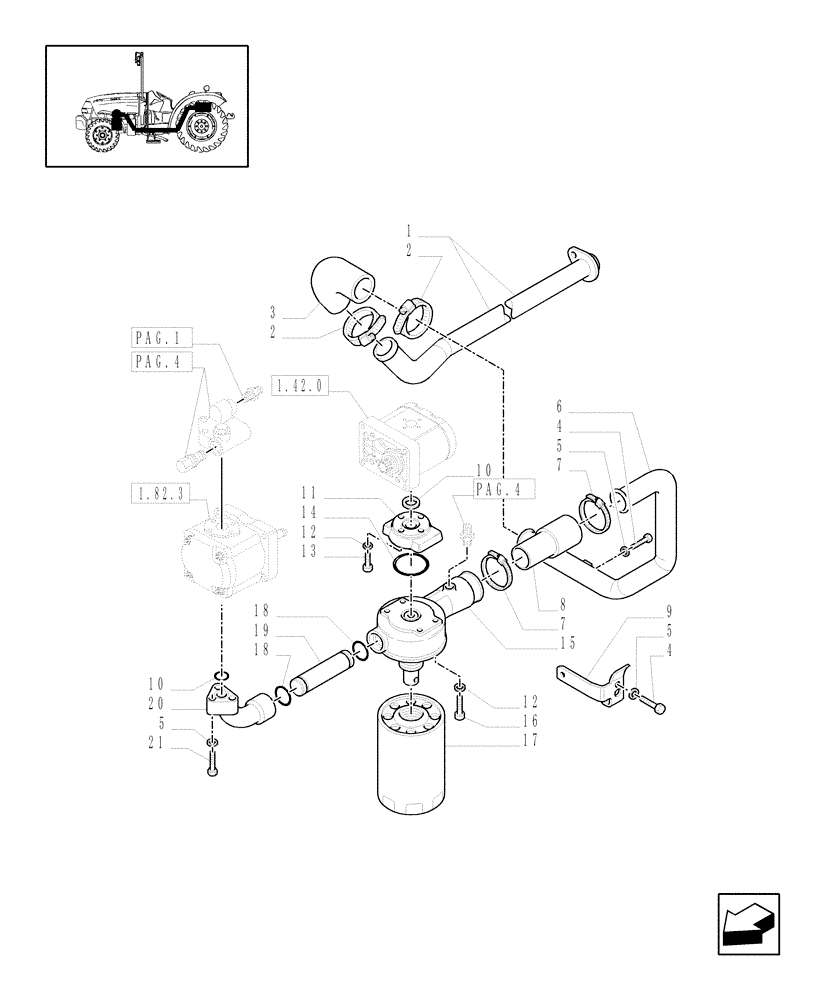

Схема запчастей Case IH JX1070N - (1.82.1[03]) - LIFTER, LINES (07) - HYDRAULIC SYSTEM
p
7
3
g.1
2
9
1
g.4
5
16
19
21
4
6
18
11
18
15
5
5
10
p
7
17
1.82.3
20
p
12
2
4
a
12
1.42.0
a
10
8
14
a
g.4
13

Артикул

Название

Примечание

Количество

1

5188196

RIGID TUBE

1шт.

2

13000990

COLLAR,60mm - 80mm, Worm Gear

DIA=60-90

2шт.

3

5188195

ELBOW,45mm ID x 145mm L

1шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

5шт.

6

5188198

RIGID TUBE

1шт.

7

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

DIA=50-70

1шт.

7

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

DIA=40-60

3шт.

8

5178545

HOSE

1шт.

9

5190128

BRACKET

1шт.

10

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

2шт.

11

5186086

PLATE

1шт.

12

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

8x12x1.5

8шт.

13

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

14

14459981

O-RING,58.42mm ID x 0.103" Width

1шт.

15

5190406

SUPPORT

1шт.

16

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

4шт.

17

47131198

ENGINE OIL FILTER

1шт.

Valid with JX1060V, JX1070N Models

1шт.

18

14463681

O-RING,31.34mm ID x 3.53" Width

2шт.

19

5188547

RIGID TUBE

1шт.

20

87316774

HYD CONNECTOR

1шт.

21

14306724

HEX SOC SCREW,M8 x 1.25 x 40mm, Cl 8.8, Full Thd

1шт.

21

14306927

SCREW,M8 x 50mm, Cl 8.8

2шт.

21

14302224

HEX SOC SCREW,M8 x 1.25 x 55mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 25
