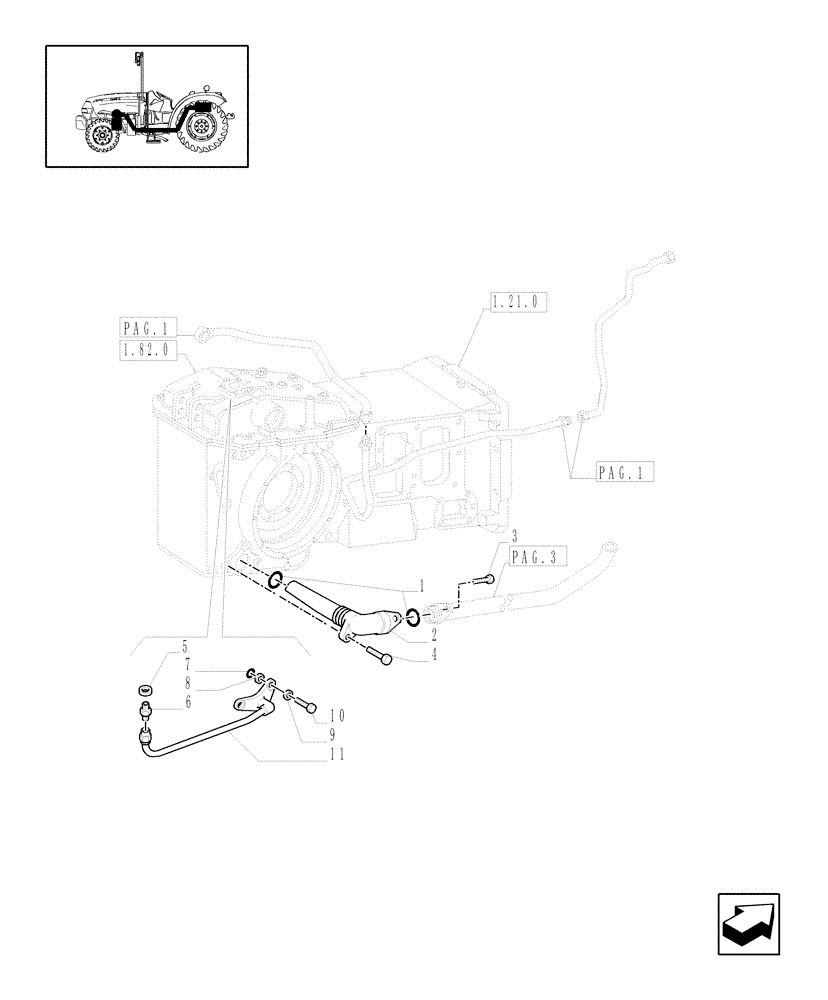

Запчасти Case IH JX1070N (1.82.1[02]) - LIFTER, LINES (07) - HYDRAULIC SYSTEM

1

5174527

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

2шт.

2

5177027

RIGID TUBE

1шт.

3

14307024

HEX SOC SCREW,M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

4

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

1шт.

5

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

1шт.

6

5158806

HYD CONNECTOR,7/8-14 UNF, M18 x 1.5

M18

1шт.

7

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

8

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

1шт.

9

10516674

LOCK WASHER,M8

2шт.

10

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

11

47130049

RIGID TUBE

Internal

1шт.
