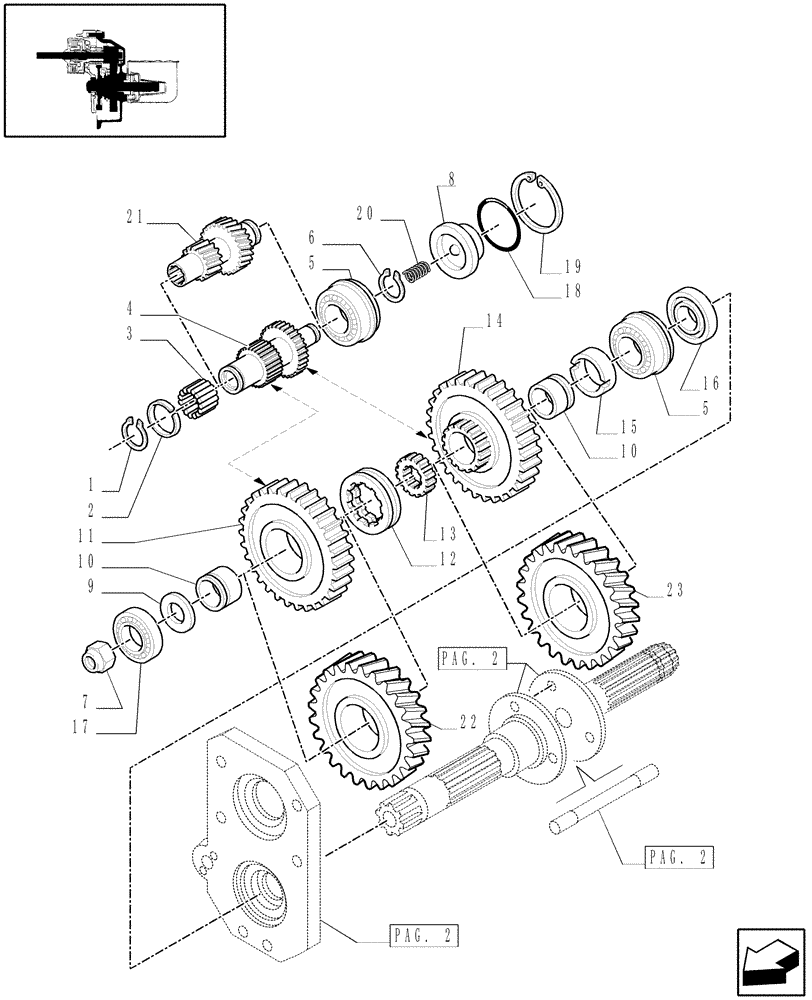

Запчасти Case IH JX1070N (1.80.1/07[01]) - (VAR.959) NA POWER TAKE-OFF (540-1000 RPM) - SHAFTS AND GEARS (07) - HYDRAULIC SYSTEM

1

84078050

SNAP RING,M22, Int

1шт.

2

5142178

SNAP RING,1.5mm Thk

1шт.

3

5173210

NEEDLE BEARING,Needle, 43mm ID x 58mm OD x 22mm W

43x58x22

1шт.

4

5177720

SHAFT

, Serial Range: -C5957

1шт.

5

5168238

BALL BEARING,40mm ID x 90mm OD x 23mm W

40x90x23

2шт.

6

11068876

SNAP RING,M40, Ext

1шт.

7

5122985

NUT,Ring, M32, 1.5 Pitch

M32x1.5

1шт.

8

47133662

COVER

1шт.

9

5168181

THRUST WASHER,35.1mm ID x 50mm OD x 4mm Thk

1шт.

10

5124668

BUSHING,38mm ID x 46mm OD x 28mm L

2шт.

11

5177719

DRIVEN GEAR

540 RPM, Serial Range: -C5957

1шт.

12

5130551

SLEEVE,70mm ID x 100mm OD x 20mm L

1шт.

13

5130550

PINION,28T / 12T

1шт.

14

5177716

DRIVEN GEAR

1000 RPM, Serial Range: -C5957

1шт.

15

5124675

THRUST WASHER,38.1mm ID x 56mm OD x 4mm Thk

1шт.

16

5124606

SEAL,50mm ID x 65mm OD x 8mm Thk

50x65x8

1шт.

17

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

35x80x21

1шт.

18

14466080

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

19

80370026

CIRCLIP

DIA=100

1шт.

20

5149398

SPRING,Compression, 23mm OD x 48mm L

1шт.

21

47123688

SHAFT

, Start Serial: D5957

1шт.

22

47123681

GEAR

540 RPM, Start Serial: D5957

1шт.

23

47123683

GEAR

1000 RPM, Start Serial: D5957

1шт.
