Запчасти Case IH JX1070N (1.80.1/06[01]) - (VAR.818) SYNCHRO MESH GEARED POWER TAKE-OFF (540-540E) - SHAFTS AND GEARS (07) - HYDRAULIC SYSTEM

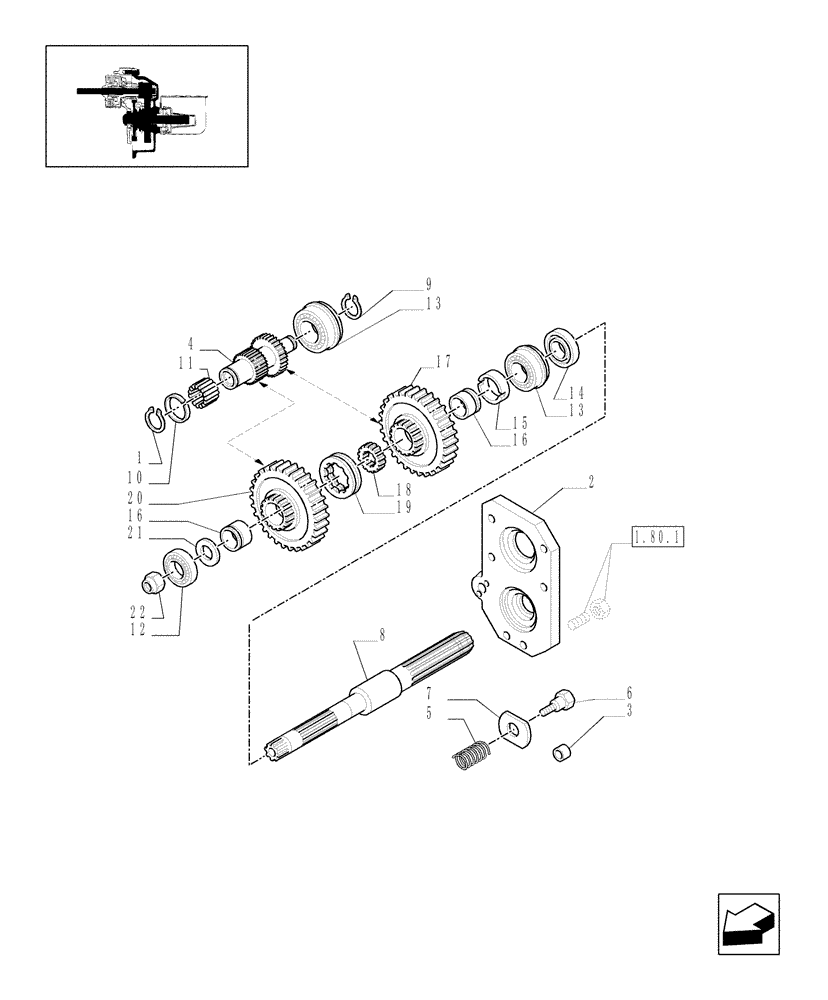

Схема запчастей Case IH JX1070N - (1.80.1/06[01]) - (VAR.818) SYNCHRO MESH GEARED POWER TAKE-OFF (540-540E) - SHAFTS AND GEARS (07) - HYDRAULIC SYSTEM
16
5
12
16
3
21
1
11
8
9
22
1.80.1
13
6
14
2
10
13
20
7
19
15
18
17
4

Артикул

Название

Примечание

Количество

1

11058076

SNAP RING,M22, Int

DIA=22

1шт.

2

47133661

COVER

1шт.

3

5180607

SPACER

1шт.

4

47125372

SHAFT

540/750 RPM

1шт.

5

47132279

SPRING,Compression, 33mm OD x 29mm L

1шт.

6

47130774

PIN,13.5mm OD x 22mm L

1шт.

7

47131175

BRAKE DISC,14mm ID x 70mm OD x 4mm Thk

1шт.

8

5180296

SHAFT,M32 x 1.5 x 264.5mm L, 12T

1шт.

9

11068876

SNAP RING,M40, Ext

1шт.

10

5142178

SNAP RING,1.5mm Thk

1шт.

11

5173210

NEEDLE BEARING,Needle, 43mm ID x 58mm OD x 22mm W

43x58x22

1шт.

12

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

35x80x21

1шт.

13

5168238

BALL BEARING,40mm ID x 90mm OD x 23mm W

40x90x23

2шт.

14

5124606

SEAL,50mm ID x 65mm OD x 8mm Thk

50x65x8

1шт.

15

5124675

THRUST WASHER,38.1mm ID x 56mm OD x 4mm Thk

2шт.

16

5124668

BUSHING,38mm ID x 46mm OD x 28mm L

2шт.

17

5168208

DRIVEN GEAR

750 RPM

1шт.

18

5130550

PINION,28T / 12T

1шт.

19

5130551

SLEEVE,70mm ID x 100mm OD x 20mm L

1шт.

20

47123681

GEAR

1шт.

21

5168181

THRUST WASHER,35.1mm ID x 50mm OD x 4mm Thk

1шт.

22

5122985

NUT,Ring, M32, 1.5 Pitch

M32

1шт.

Выбрано товаров: 22
