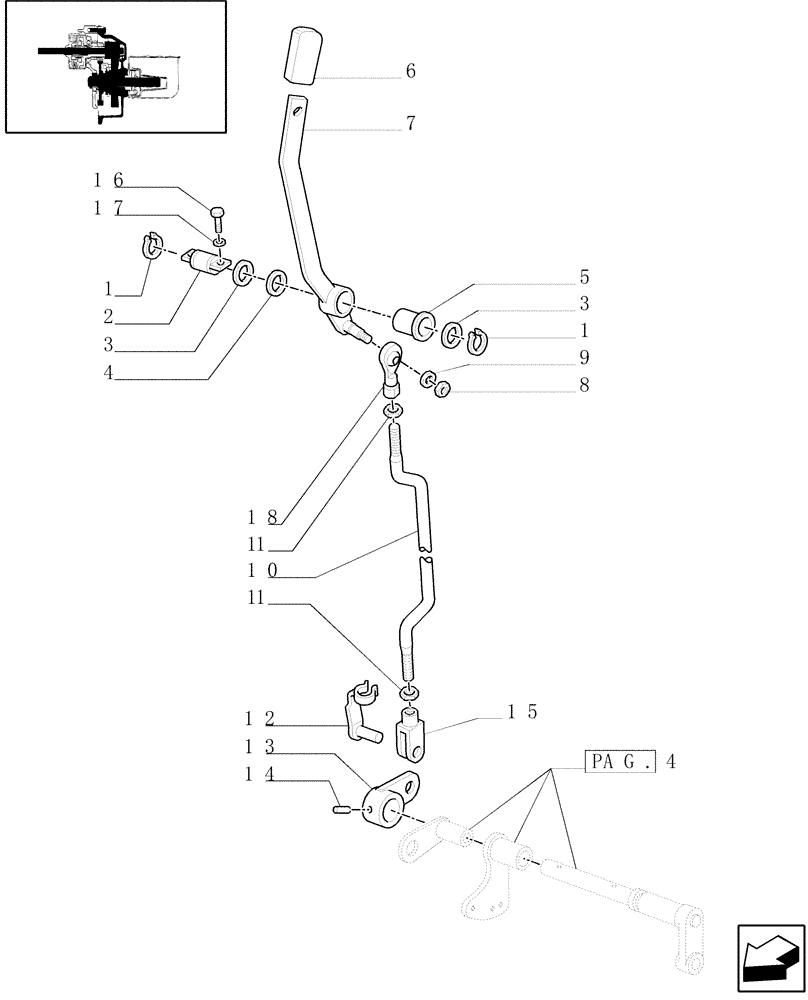

Запчасти Case IH JX1070N (1.80.1/05[05]) - (VAR.817) SYNCHRO MESH GEARED POWER TAKE-OFF (540-540E-1000 RPM) - COUPLING LEVER (07) - HYDRAULIC SYSTEM

1

11066976

SNAP RING,M21, Ext

2шт.

2

5188383

PIN,21mm x 68mm OD

1шт.

3

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

D = 35 x 21 x 2

2шт.

4

5154840

SHIM,21mm ID x 35mm OD x 2mm Thk

21x35x2

1шт.

5

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

21x27x22

1шт.

6

87342361

KNOB

1шт.

7

5191593

LEVER

1шт.

8

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

9

11194371

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.4mm Thk

1шт.

10

5191598

TIE-ROD

1шт.

11

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

2шт.

12

5189396

PIN,8mm OD x 19mm L

1шт.

13

5191599

LEVER

1шт.

14

13910570

ROLL PIN,M6 x 36, Coiled

1шт.

15

10007871

YOKE,8mm ID Pin Hole, M8 x 42mm L

1шт.

16

14307024

HEX SOC SCREW,M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

17

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

18

82007661

BALL JOINT,M8 x 1.25 x 48mm

1шт.
