Запчасти Case IH JX1070N (1.80.1/05[02]) - (VAR.817) SYNCHRO MESH GEARED POWER TAKE-OFF (540-540E-1000 RPM) - SHAFTS AND GEARS (07) - HYDRAULIC SYSTEM

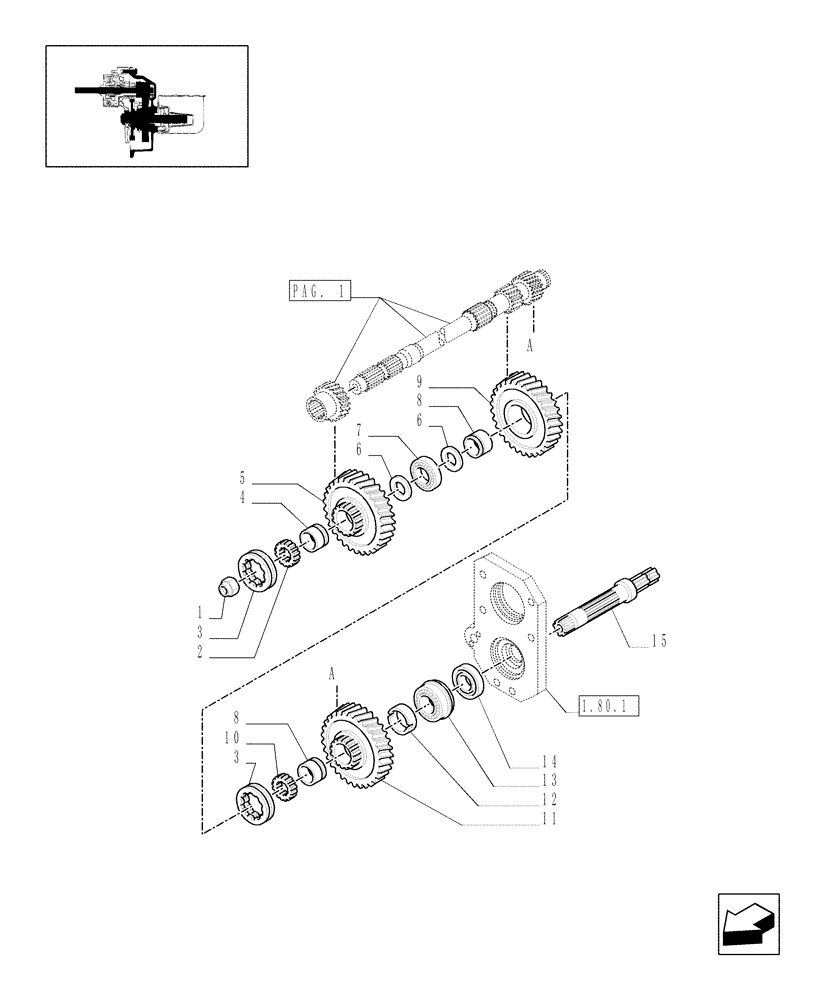

Схема запчастей Case IH JX1070N - (1.80.1/05[02]) - (VAR.817) SYNCHRO MESH GEARED POWER TAKE-OFF (540-540E-1000 RPM) - SHAFTS AND GEARS (07) - HYDRAULIC SYSTEM
8
1
8
15
11
5
13
pag. 1
2
4
3
1.80.1
a
a
6
10
14
3
12
9
7
6

Артикул

Название

Примечание

Количество

1

5100183

LOCK NUT,Hex, M328 x 1.5, Cl 8.8

M28x1.5

1шт.

2

5173196

GEAR,12T Internal / 26T External

1шт.

3

5130551

SLEEVE,70mm ID x 100mm OD x 20mm L

2шт.

4

5173189

BUSHING,34mm ID x 46mm OD x 28mm L

1шт.

5

47123683

GEAR

1000 RPM

1шт.

6

5168181

THRUST WASHER,35.1mm ID x 50mm OD x 4mm Thk

2шт.

7

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

35x80x21

1шт.

8

5124668

BUSHING,38mm ID x 46mm OD x 28mm L

2шт.

9

47123681

GEAR

540 RPM

1шт.

10

5130550

PINION,28T / 12T

1шт.

11

5168208

DRIVEN GEAR

750 RPM

1шт.

12

5124675

THRUST WASHER,38.1mm ID x 56mm OD x 4mm Thk

1шт.

13

5168238

BALL BEARING,40mm ID x 90mm OD x 23mm W

40x90x8

1шт.

14

5124606

SEAL,50mm ID x 65mm OD x 8mm Thk

50x65x8

1шт.

15

5185749

SHAFT,M28 x 1.5 x 316mm L, 12T

1шт.

Выбрано товаров: 15
