Запчасти Case IH JX1070N (1.80.1/05[01]) - (VAR.817)SYNCHRO MESH GEARED POWER TAKE-OFF ((540-540E-1000 RPM) - SHAFTS AND GEARS (07) - HYDRAULIC SYSTEM

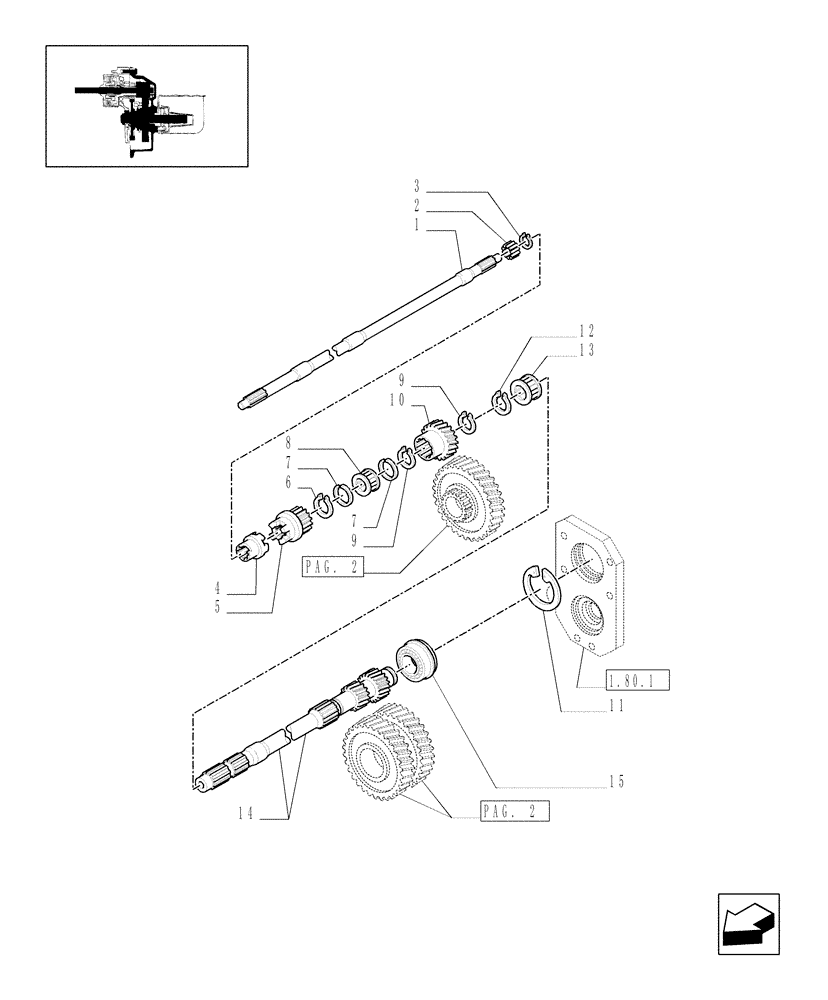

Схема запчастей Case IH JX1070N - (1.80.1/05[01]) - (VAR.817)SYNCHRO MESH GEARED POWER TAKE-OFF ((540-540E-1000 RPM) - SHAFTS AND GEARS (07) - HYDRAULIC SYSTEM
14
8
1.80.1
7
11
7
12
4
15
5
1
2
9
pag. 2
pag. 2
6
9
13
3
10

Артикул

Название

Примечание

Количество

1

5177144

CLUTCH INPUT SHAFT

1шт.

2

5103238

NEEDLE BEARING,15mm ID x 21mm OD x 16mm W

15x21x16

1шт.

3

11067276

SNAP RING,M24, Ext

1шт.

4

5172083

COUPLING,10T

1шт.

5

5183818

SPLINED COUPLING,38mm ID x 71mm OD x 48.5mm L

1шт.

6

13398776

SNAP RING,M35, Int

1шт.

7

5173213

SNAP RING,1.5mm Thk, Int

2шт.

8

5173212

NEEDLE BEARING,Needle, 37mm ID x 52mm OD x 22mm W

37x52x22

1шт.

9

11068976

SNAP RING,M42, Ext

2шт.

10

47123685

GEAR

1000 RPM

1шт.

11

11068876

SNAP RING,M40, Ext

1шт.

12

5142178

SNAP RING,1.5mm Thk

1шт.

13

5173210

NEEDLE BEARING,Needle, 43mm ID x 58mm OD x 22mm W

43X58x22

1шт.

14

47123684

SHAFT

540-750 RPM

1шт.

15

5168238

BALL BEARING,40mm ID x 90mm OD x 23mm W

40x90x23

1шт.

Выбрано товаров: 15
