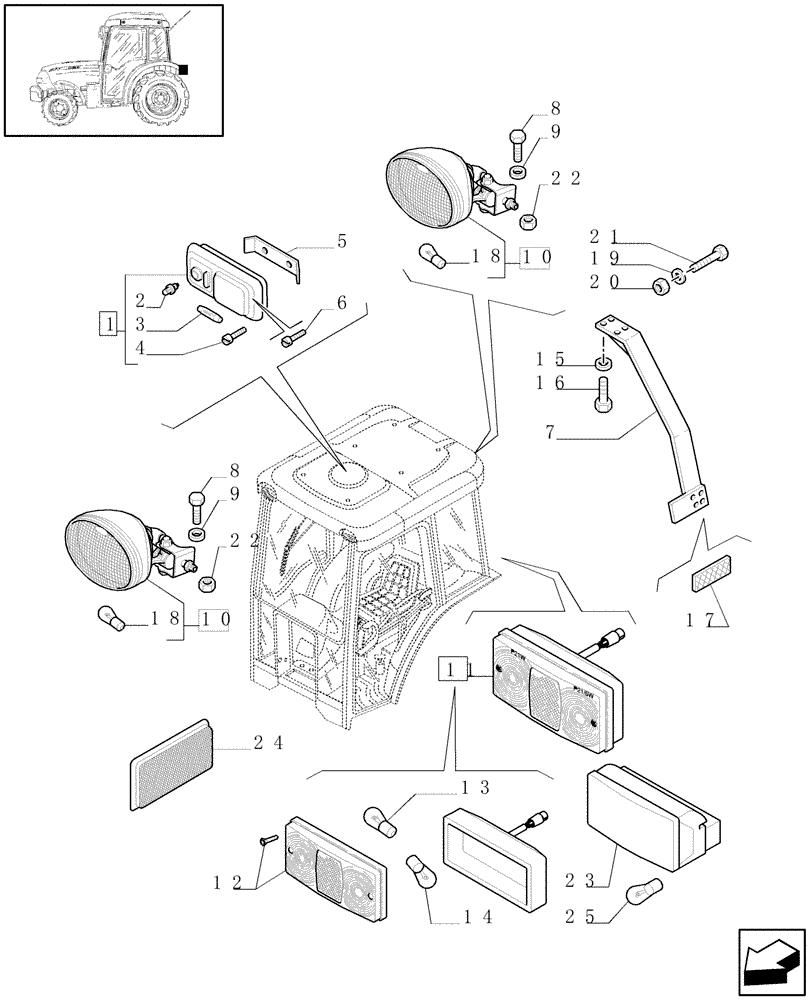

Запчасти Case IH JX1070N (1.75.6[02]) - LIGHTING COMPONENTS - W/CAB (06) - ELECTRICAL SYSTEMS

1

5141635

CEILING LAMP

Assy

1шт.

2

14144190

BULB,W5W, 12V, 5W

12V/5W

1шт.

3

10863090

BULB,C5W, 12V, 5W

1шт.

4

15902604

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 9.50mm

2шт.

5

44911604

BRACKET

1шт.

6

13272621

SCREW,Cross Pan Hd, M4 x 25mm, Cl 8.8

2шт.

7

5190719

SUPPORT

1шт.

8

13181601

SCREW,M8 x 55mm

M8x55

4шт.

9

12646778

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

10

47056885

LAMP

Front/Rear, LH

2шт.

10

47056879

LAMP

RH

2шт.

11

5170315

TAIL LAMP,12V, 21W, Amber/Red

Rear

2шт.

12

9971658

LENS

Red

2шт.

13

529068

BULB,#1156, 12V, 21W

2шт.

14

14144690

BULB,P21/5W, 12V, 21/5W

12V-5/21W

2шт.

15

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

16

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

17

82002957

REFLECTOR

1шт.

18

14151590

BULB,H3, 12V, 55W

12V-55W

4шт.

19

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

2шт.

20

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

21

15966217

SCREW,Pan Hd, Sq Nk, M6 x 18mm, Cl 5.8

M6x18

2шт.

22

16104414

LOCK NUT,M8 x 1.25

1шт.

23

5198445

TAIL LAMP,12V-21W, RH

RH, VAR.007, JX1070N, JX1075N, Incl. 25

1шт.

23

5198446

TAIL LAMP,12V-21W, LH

LH, VAR.007, JX1070N,JX1075N, Incl. 25

1шт.

24

82002957

REFLECTOR

2шт.

24

5198365

REFLECTOR

VAR.007, JX1070N, JX1075N

2шт.

25

14151090

BULB

12V

2шт.
