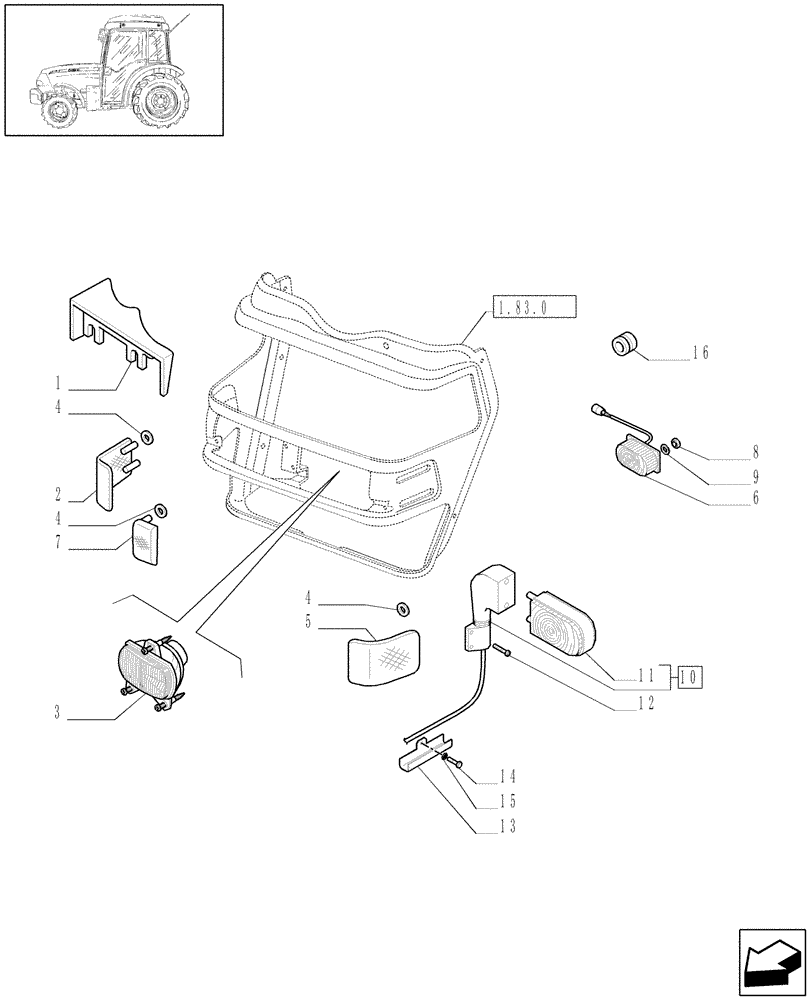

Запчасти Case IH JX1070N (1.75.6[01]) - FRONT HEADLAMPS (06) - ELECTRICAL SYSTEMS

1

47126211

COVER

RH

1шт.

1

47126005

COVER

LH

1шт.

2

47131716

REFLECTOR

RH

1шт.

3

47134705

HEADLAMP,Halogen, 12V, 60W, Clear

2шт.

3

47134706

HEADLAMP

VAR.760-767

2шт.

4

47131714

SPRING CLIP

DIA=4

10шт.

5

47131715

REFLECTOR

LH

1шт.

6

47133202

FRONT LAMP,12V, 21W, Amber/Clear

W/CAB

2шт.

6

47133204

FRONT LAMP,12V, 21W, Amber

LH, W/CAB, VAR.007, JX1070N, JX1075N

1шт.

7

47135230

REFLECTOR

1шт.

8

10788811

NUT,M5, Cl 8

w/Cab

4шт.

9

11181674

BELLEVILLE WASHER,M5 Bolt Size x 15mm OD x 1mm Thk

W/Cab

4шт.

10

47130753

FRONT LAMP

Front, RH, L/CAB

1шт.

10

47133211

FRONT LAMP

Front, LH, L/CAB

1шт.

11

47133211

FRONT LAMP

Front, LH, L/CAB

1шт.

12

80120228

SCREW

M8x20, L/CAB

2шт.

13

47134566

BRACKET

L/CAB

2шт.

14

10902324

BOLT,Hex, M6 x 18mm, Cl 8.8, Full Thd

L/Cab

2шт.

15

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

L/Cab

2шт.

16

10403380

RING,10mm ID x 22mm OD x 12mm Thk

1шт.
