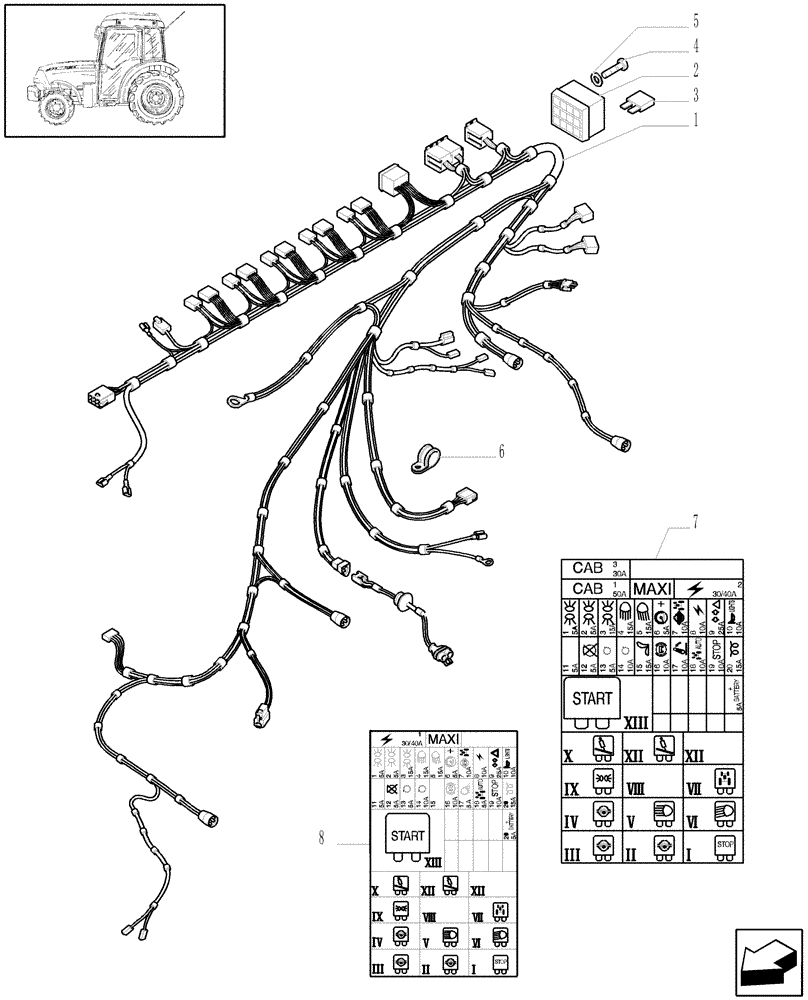

Запчасти Case IH JX1070N (1.75.4/01[04]) - CAB CABLE WITH HEATER - W/CAB (06) - ELECTRICAL SYSTEMS

1

47130343

ELECTRIC CABLE

, Serial Range: -C5294

1шт.

1

87524697

ELECTRIC CABLE

, Start Serial: D5294

1шт.

2

47134166

FUSE BOX

1шт.

3

87693742

FUSE,5A

1шт.

3

9811773

FUSE,10A, Micro, Red

1шт.

3

92277

FUSE,30 Amp

25A

1шт.

3

84090658

FUSE,Lt Blue, 15 Amp

3шт.

4

13279011

SCREW,Cross Pan Hd, M8 x 12mm

4шт.

5

10516674

LOCK WASHER,M8

4шт.

6

10450090

CLAMP,8mm, Coat, 9mm Bolt Hole, P Type

2шт.

7

47134783

DATA PLAQUE

, Serial Range: -C5348

1шт.

8

47134782

DATA PLAQUE

, Start Serial: D5348

1шт.
