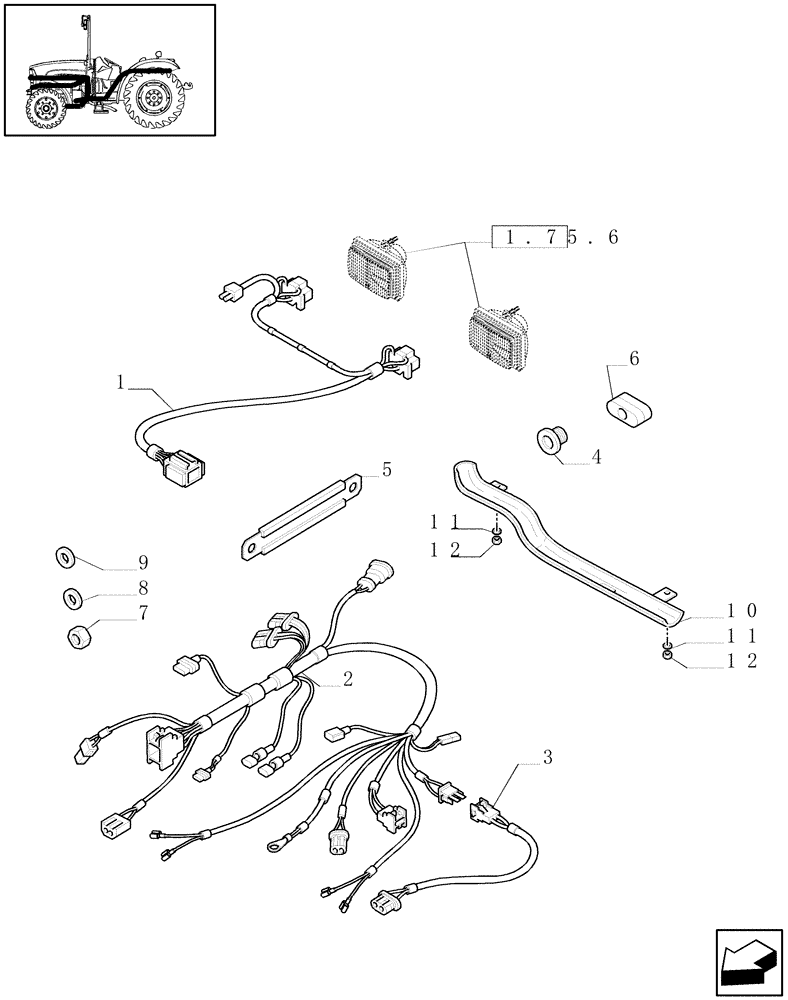

Запчасти Case IH JX1070N (1.75.4/01[02]) - AUXILIARY CABLES - W/CAB (06) - ELECTRICAL SYSTEMS

1

47130328

ELECTRIC CABLE

1шт.

2

47130355

ELECTRIC CABLE

4WD, Serial Range: -HJC049702

1шт.

Transmission Harness

1шт.

2

47132871

ELECTRIC CABLE

2WD, Serial Range: -HJC049702

1шт.

Transmission Harness

1шт.

2

87313113

ELECTRIC CABLE

4WD, Start Serial: HJC049703

1шт.

Transmission Harness

1шт.

2

87313085

ELECTRIC CABLE

2WD, Start Serial: HJC049703

1шт.

Transmission Harness

1шт.

3

5189718

WIRE HARNESS

Neutral

1шт.

4

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

1шт.

5

5180723

BRACKET

1шт.

6

87565310

GROMMET,8mm ID x 28mm x 38mm x 10mm

4шт.

7

10794014

NUT,M4, Cl 8

1шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

9

10615774

WASHER

DIA=10

1шт.

10

5188790

BRACKET

1шт.

11

11193774

WASHER,Belleville, M6.4

2шт.

12

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.
