Запчасти Case IH JX1070N (1.75.1/01) - (VAR.271) HI-LO - ELECTRIC CONTROLS, SWITCHES, MEASURING DEVICE AND RELAYS (06) - ELECTRICAL SYSTEMS

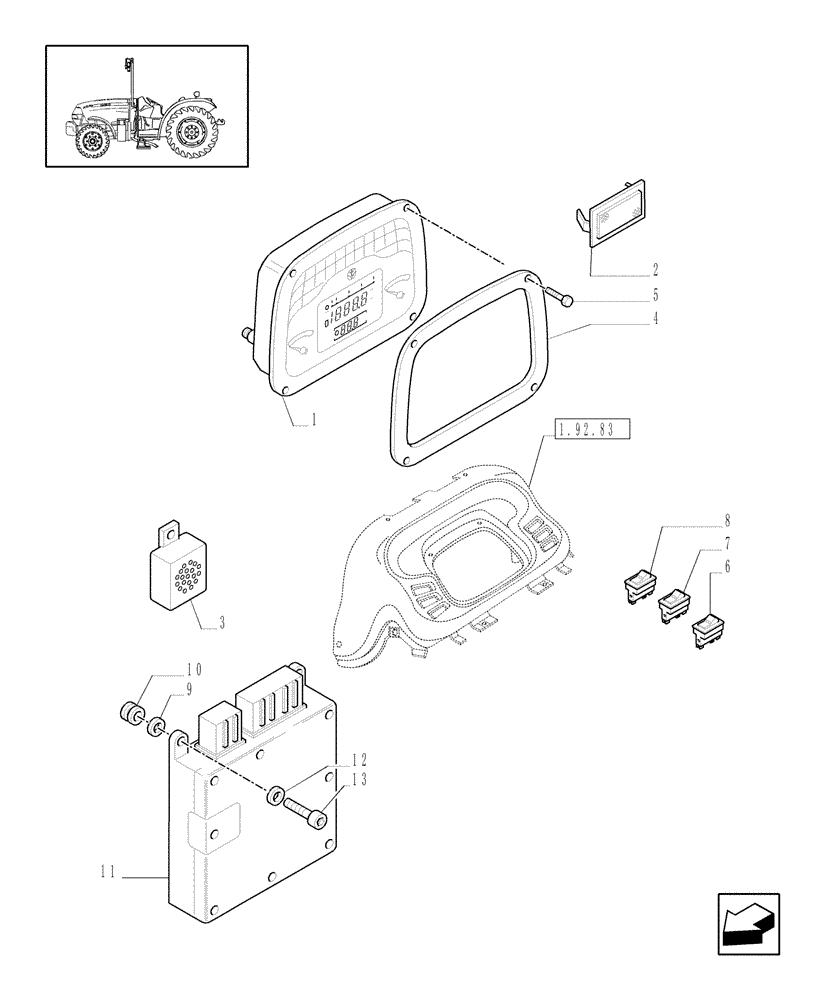

Схема запчастей Case IH JX1070N - (1.75.1/01) - (VAR.271) HI-LO - ELECTRIC CONTROLS, SWITCHES, MEASURING DEVICE AND RELAYS (06) - ELECTRICAL SYSTEMS
1.92.83
1
5
7
13
8
3
9
2
11
4
6
12
10

Артикул

Название

Примечание

Количество

1

47125972

MEASURING INSTRUMENT

1шт.

2

5166218

PLUG,Switch

1шт.

3

5188605

BUZZER,12V, 0.7A

1шт.

4

5180363

HEX SOC SCREW,M4 x 0.7 x 25mm, Cl 8.8

4шт.

5

5175371

GASKET,3mm Thk

1шт.

6

5180557

DIFF LOCK SWITCH

Diff. lock, L/CAB

1шт.

6

5186355

DIFF LOCK SWITCH

Diff. Lock, W/CAB

1шт.

7

5189760

TOGGLE SWITCH

Calibration/Selection

1шт.

8

5189759

TOGGLE SWITCH

Clock Adj.

1шт.

9

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

6x16

2шт.

10

5175382

RUBBER RING

DIA=10

1шт.

11

47137064

ECU

P/Shuttle Control, Serial Range: -C5651

1шт.

11

87575340R

REMAN ELECT CONTROL

P/Shuttle Control

1шт.

11

87575340C

CORE-ELECTRONIC CONT

Return Number

1шт.

11

87575340

ECU

P/Shuttle Control, Start Serial: D5651

1шт.

11

87575340R

REMAN ELECT CONTROL

Remanufactured Electronic Control Unit

1шт.

11

87575340C

CORE-ELECTRONIC CONT

Return Number, ELECTRONIC CONTROL UNIT

1шт.

11

47137064C

CORE-ELECTRONIC CONT

Return Number, ELECTRONIC CONTROL UNIT (JX1070N, JX1075N)

1шт.

12

12035670

LOCK WASHER

M6

2шт.

13

10902114

BOLT,Hex, M6 x 14mm, Cl 5.8, Full Thd

2шт.

Выбрано товаров: 20
