Запчасти Case IH JX1070N (1.75.0/01) - (VAR.271) HI-LO - ELECTRIC CONTROLS, POWER - SHUTTLE CONTROL LEVER (06) - ELECTRICAL SYSTEMS

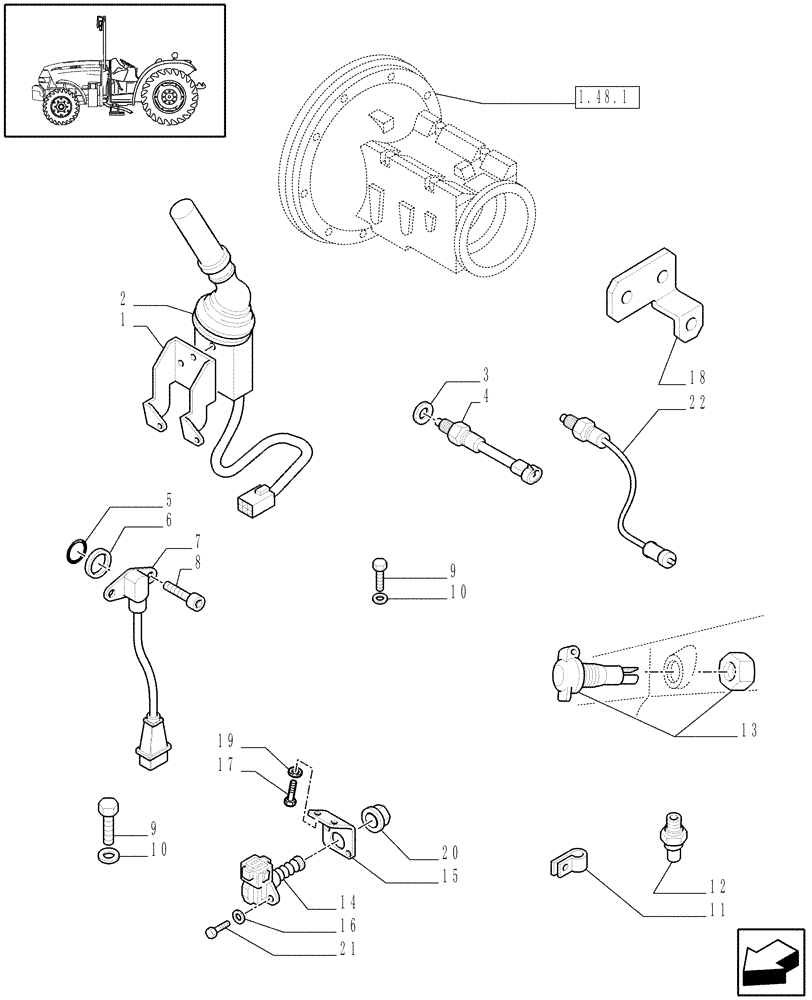

Схема запчастей Case IH JX1070N - (1.75.0/01) - (VAR.271) HI-LO - ELECTRIC CONTROLS, POWER - SHUTTLE CONTROL LEVER (06) - ELECTRICAL SYSTEMS
6
10
21
12
15
13
1.48.1
20
1
18
8
5
16
7
4
11
9
22
2
3
19
14
17
9
10

Артикул

Название

Примечание

Количество

1

5173849

BRACKET

1шт.

2

47132543

CONTROL

P/Shuttle, Serial Range: -C5550

1шт.

2

87577564

CONTROL

Power Shottle, Start Serial: D5550

1шт.

3

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x18

2шт.

4

47132568

SWITCH

Grey, Serial Range: -C5561

2шт.

Front synchro and gear lever

1шт.

4

47132569

SWITCH

Green, Serial Range: -C5561

2шт.

Rear synchro and range lever

1шт.

5

89827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

L/Cab

2шт.

6

5153070

SPACER,15.3mm ID x 17.4mm OD x 4.5mm L

15.3x17.4x4.5, L/CAB, Serial Range: -HJB020795

2шт.

7

5150991

SENSOR

PTO SPEED, Serial Range: -HJB020795

2шт.

7

87564764

SENSOR

Speed, Start Serial: HJB020796

1шт.

8

10977524

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

L/Cab

4шт.

9

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

7шт.

10

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

5шт.

11

10450090

CLAMP,8mm, Coat, 9mm Bolt Hole, P Type

L/Cab

1шт.

12

82036587

PRESSURE SWITCH

1шт.

Engine oil pressure

1шт.

12

87694764

PRESSURE SWITCH

1шт.

Engine Oil Pressure

1шт.

13

82002966

POWER SOCKET,M18 x 1

1шт.

14

87735366

SWITCH

Hand Brake

1шт.

15

5198050

BRACKET

1шт.

16

80322355

WASHER

M4

2шт.

17

13272124

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 8.8, Full Thd

2шт.

18

5192743

RETAINER COLLAR

1шт.

19

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

20

5198051

NUT

1шт.

21

13271924

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 8.8, Full Thd

2шт.

22

87585979

SWITCH

Grey, Start Serial: D5561

1шт.

Front syncro and gear lever

1шт.

22

87585980

SWITCH

Green, Start Serial: D5561

1шт.

Rear syncro and range lever

1шт.

Выбрано товаров: 33
