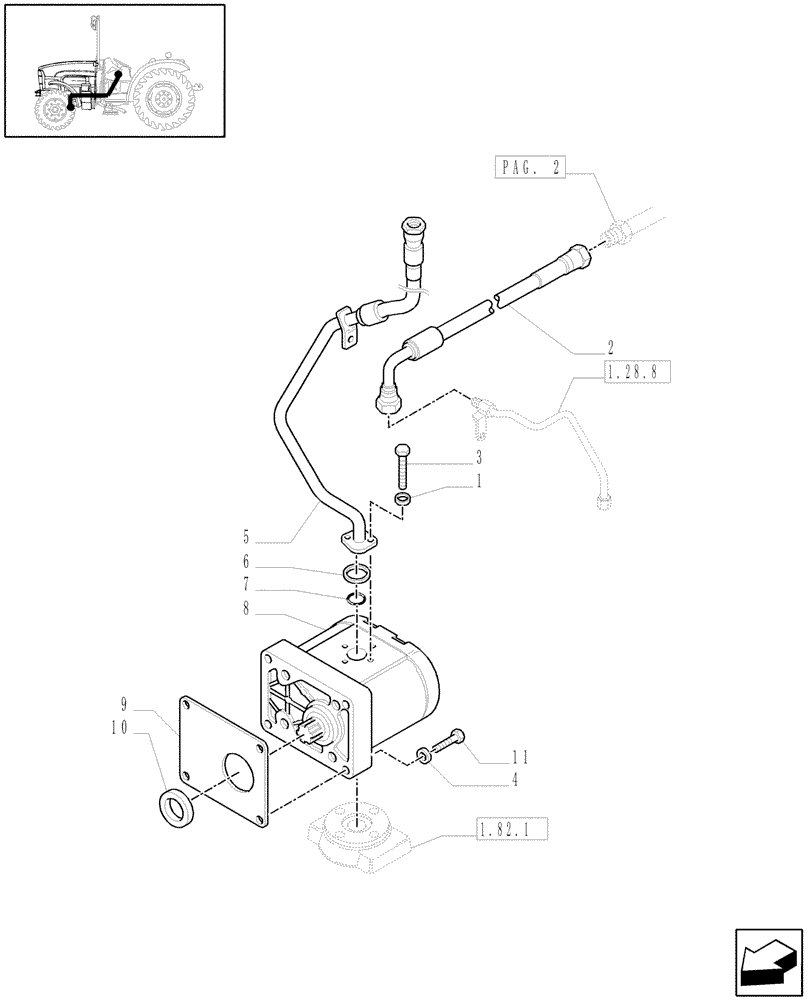

Запчасти Case IH JX1070N (1.42.0[01]) - SERVO - ASSISTED STEERING HYDRAULIC SYSTEM (04) - FRONT AXLE & STEERING

1

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

2

5189318

FLEXIBLE HOSE

IN

1шт.

3

14305424

HEX SOC SCREW,M6 x 25mm, Cl 8.8, Full Thd

2шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

5

5191814

HYDRAULIC HOSE

Out, Serial Range: -C5948

1шт.

5

87371876

FLEXIBLE HOSE

, Start Serial: D5948

1шт.

6

44015841

BACK-UP RING,19mm ID x 20mm OD x 2.05mm Thk

1шт.

7

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

8

5186282

HYDRAULIC PUMP,11.26 CC

Assy.

1шт.

9

5186310

SEAL

1шт.

10

5118568

CENTERING RING

Centering

1шт.

11

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.
