(1.40.5/07) - (VAR.320) HIGH SPEED RING GEAR AND PINION 40KM/H, 4WD WITH FRONT BRAKES - DIFFERENTIAL

Запчасти Case IH JX1070N (1.40.5/07) - (VAR.320) HIGH SPEED RING GEAR AND PINION 40KM/H, 4WD WITH FRONT BRAKES - DIFFERENTIAL (04) - FRONT AXLE & STEERING

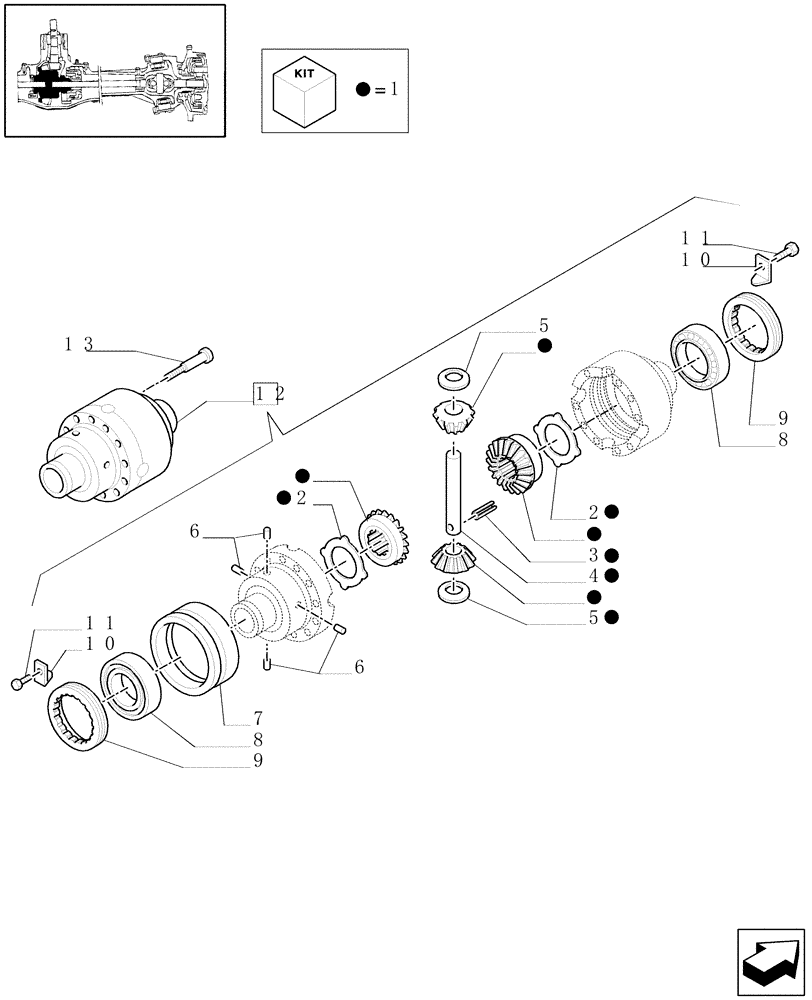

Схема запчастей Case IH JX1070N - (1.40.5/07) - (VAR.320) HIGH SPEED RING GEAR AND PINION 40KM/H, 4WD WITH FRONT BRAKES - DIFFERENTIAL (04) - FRONT AXLE & STEERING
3
1
2
1
10
8
1
13
5
6
1
10
1
7
9
6
1
2
1
11
5
11
1
1
1
4
8
12
1
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5194182

KIT

1шт.

2

5194183

DISC

2шт.

3

5194184

ROLL PIN

6x28

1шт.

4

5194185

PIN

1шт.

5

5194186

WASHER

2шт.

6

5194187

PIN

10x15.2

4шт.

7

5194188

SLEEVE

1шт.

8

84819201

ROLLER BEARING

2шт.

9

5194295

RING NUT,M94 x 2

M94x2

2шт.

10

5194296

RETAINER COLLAR

2шт.

11

5194192

BOLT

M6x10

2шт.

12

5194193

DIFFERENTIAL GEAR

1шт.

13

5194194

BOLT,Hex, M10 x 75

12шт.
