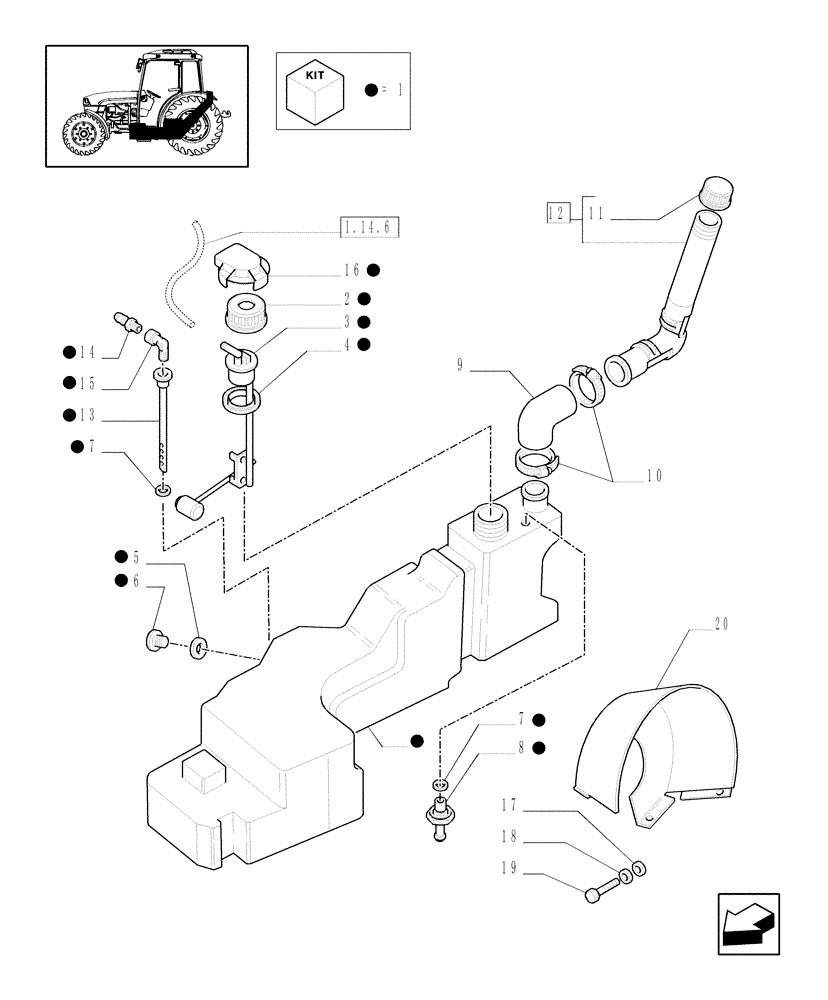

Запчасти Case IH JX1095C (1.14.0/02) - (VAR.207) FUEL TANK WITH CLEARANCE FROM GROUND 70MM - FUEL TANK AND GUARD (02) - ENGINE EQUIPMENT

1

47129126

FUEL TANK

ASSY

1шт.

2

82002171

RING NUT

1шт.

3

47127116

LEVEL GAUGE CONTROL

1шт.

4

83998804

GASKET,4mm Thk

1шт.

5

14463889

O-RING,34.52mm ID x 3.53" Width

1шт.

6

82019464

PLUG,3/4" GAS x 13.5mm L

D=46

1шт.

7

14463181

O-RING,921" ID x 0.139" Width

2шт.

8

5191130

HYD CONNECTOR

1шт.

9

5185885

HOSE,66.00 mm ID

1шт.

10

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

M50-70

2шт.

11

82009352

FILLER CAP

1шт.

11

85702172

CAP

Locking

1шт.

12

5192320

NECK FILLER

1шт.

13

5187042

RIGID TUBE

1шт.

14

5186203

HYD CONNECTOR,M1/4-9

1шт.

15

5184539

HYD CONNECTOR,1/4" GAS - 1/4" GAS - 90°

1шт.

16

47123293

BOOT

1шт.

17

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

18

12642001

WASHER,8.15mm ID x 25mm OD x 1.5mm Thk

3шт.

19

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

20

47126423

SHIELD

1шт.
