(1.14.0/01[01]) - (VAR.131) FUEL TANK SHIELD PROTECTION - GUARD - C5540

Запчасти Case IH JX1095C (1.14.0/01[01]) - (VAR.131) FUEL TANK SHIELD PROTECTION - GUARD - C5540 (02) - ENGINE EQUIPMENT

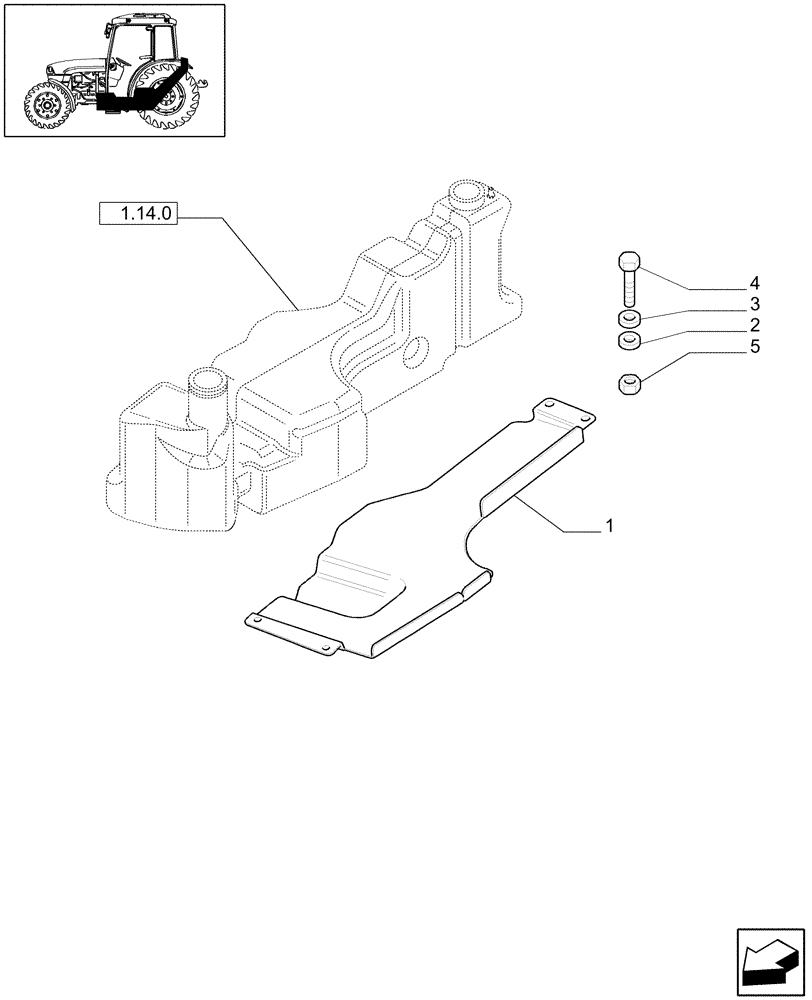

Схема запчастей Case IH JX1095C - (1.14.0/01[01]) - (VAR.131) FUEL TANK SHIELD PROTECTION - GUARD - C5540 (02) - ENGINE EQUIPMENT
2
5
3
1.14.0
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87307527

GUARD

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

3

12642001

WASHER,8.15mm ID x 25mm OD x 1.5mm Thk

4шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

Выбрано товаров: 5
