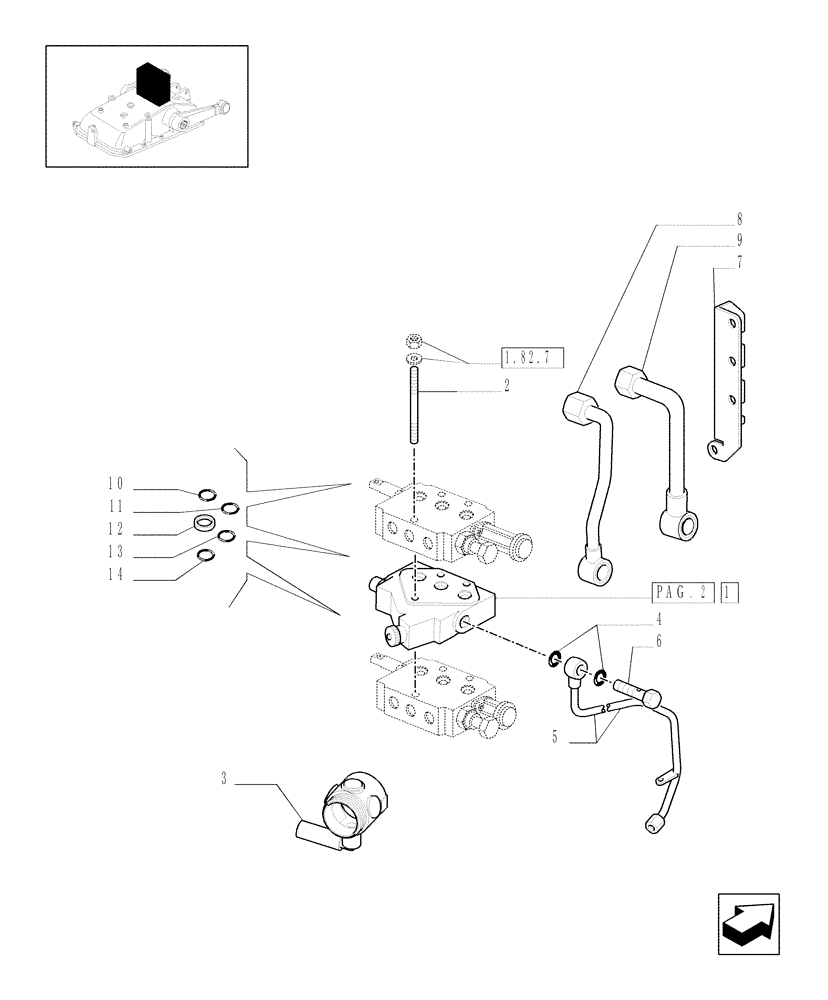

Запчасти Case IH JX1095C (719405030[01]) - (DIA KIT) FLOW CONTROL KIT (18) - VARIATIONS

1

5186284

HYDRAULIC VALVE

ASSY

1шт.

2

5149336

THREADED ROD,3/8" - 24 x 10"

3шт.

3

47133026

PLUG

2шт.

4

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

D=22

2шт.

4

10261860

COPPER WASHER,22.3mm ID x 30mm OD x 1.5mm Thk

1шт.

5

5186138

RIGID TUBE

For MDC

1шт.

5

5186139

RIGID TUBE

For EDC

1шт.

6

5182095

BANJO BOLT,M22 x 1.5 x 47mm

1шт.

7

5179944

CONSOLE

1шт.

8

5188499

RIGID TUBE

1шт.

9

5173696

RIGID TUBE

For MDC

1шт.

9

5188501

RIGID TUBE

For EDC

1шт.

10

5180283

RING,16mm ID x 18.5mm OD x 2.1mm Thk

D=18.72

3шт.

11

5146467

RING,19.2mm ID x 20.2mm OD x 2.3mm Thk

D=19.2

1шт.

12

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

D=24

1шт.

13

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

14

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

3шт.
