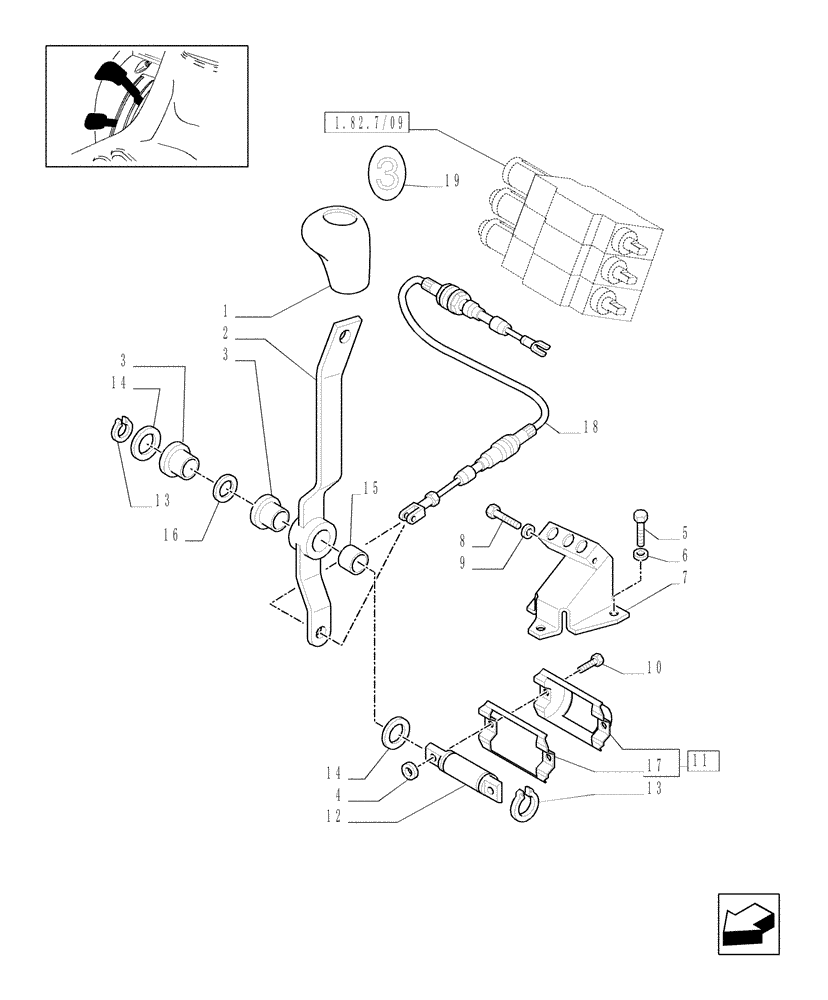

Запчасти Case IH JX1095C (719195040[03]) - (DIA KIT) 3RD REMOTE S/D W/FLOAT + DELUXE COUPLERS. (18) - VARIATIONS

1

47056482

KNOB

1шт.

2

47128520

LEVER

1st-3rd Distrib.

1шт.

3

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

21x27x22

1шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

5

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.

6

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

3шт.

7

47127691

SUPPORT

1шт.

8

14304724

HEX SOC SCREW,M5 x 50mm, Cl 8.8, Full Thd

1шт.

9

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

1шт.

10

5134736

SCREW,M8 x 22mm, Cl 8.8

M8x20

2шт.

11

47127856

COVER

1шт.

12

47127819

PIN

1шт.

13

11066974

SNAP RING,M21, Ext

D=21

2шт.

14

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

D = 35 x 21 x 2

2шт.

15

5154839

SPACER,21mm ID x 35mm OD x 22mm L

21x35x22

3шт.

16

5154840

SHIM,21mm ID x 35mm OD x 2mm Thk

21x35x2

1шт.

17

47127840

GASKET

1шт.

18

5199209

CABLE,900mm L

1шт.

19

47057201

IDEOGRAM

1шт.
