(719195040[02]) - (DIA KIT) 3RD REMOTE S/D W/FLOAT + DELUXE COUPLERS.

Запчасти Case IH JX1095C (719195040[02]) - (DIA KIT) 3RD REMOTE S/D W/FLOAT + DELUXE COUPLERS. (18) - VARIATIONS

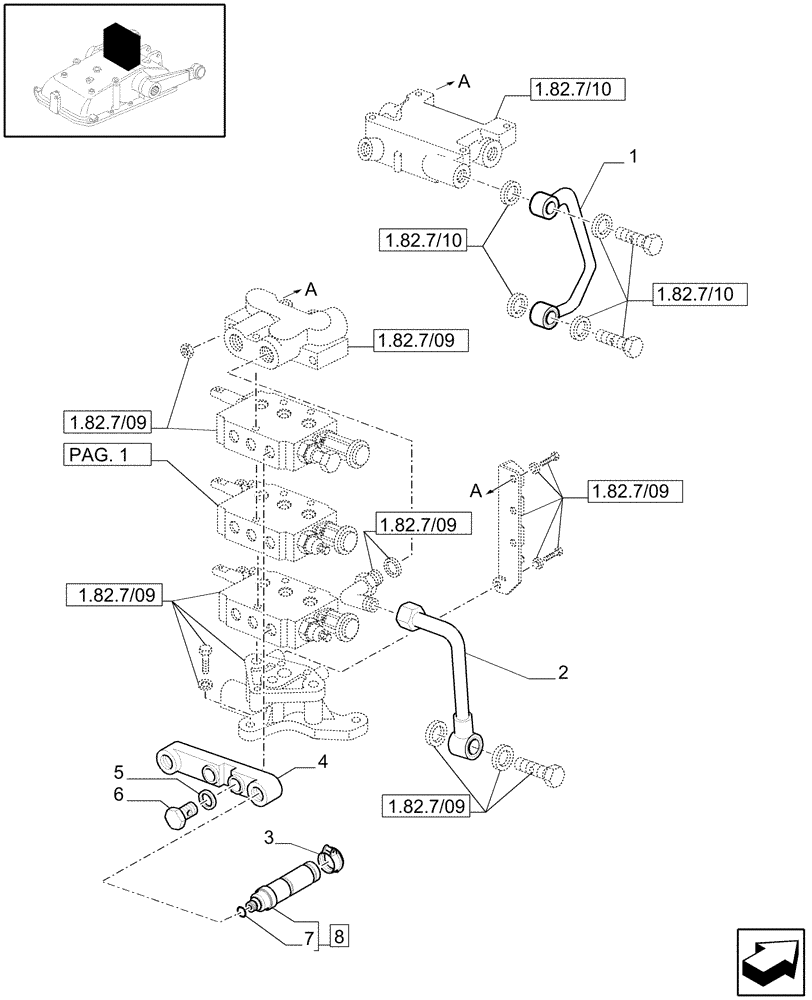

Схема запчастей Case IH JX1095C - (719195040[02]) - (DIA KIT) 3RD REMOTE S/D W/FLOAT + DELUXE COUPLERS. (18) - VARIATIONS
1.82.7/09
1
a
a
1.82.7/09
1.82.7/09
6
1.82.7/10
1.82.7/09
3
1.82.7/09
1.82.7/10
8
2
5
7
1.82.7/09
4
1.82.7/10
pag. 1
a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5174118

RIGID TUBE

For EDC

1шт.

2

5173696

RIGID TUBE

For MDC

1шт.

3

47132128

DUST CAP,Brown

Brown

2шт.

4

5185533

HYD CONNECTOR

1шт.

5

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

6

5168481

BANJO BOLT,M18 x 1.5 x 38mm

M18

2шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

8

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

include p/n 1534623C1

2шт.

1534623C1

SEAL KIT

1шт.

Выбрано товаров: 9
