Запчасти Case IH JX1095C (719195040[01]) - (DIA KIT) 3RD REMOTE S/D W/FLOAT + DELUXE COUPLERS. (18) - VARIATIONS

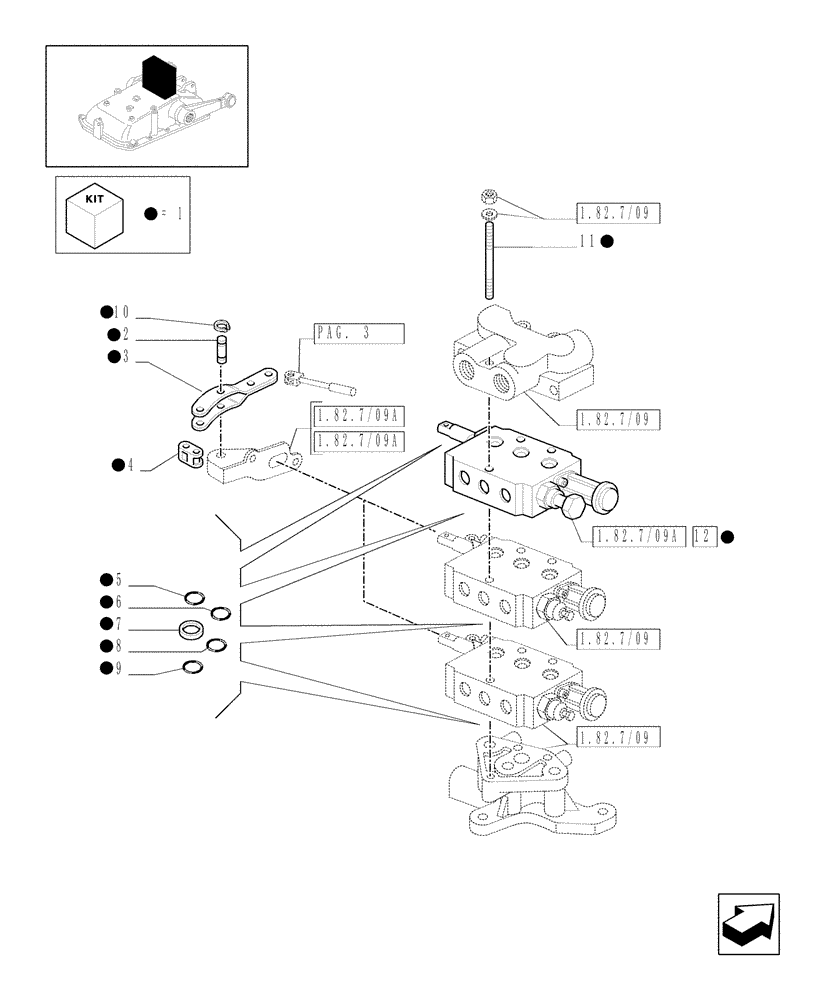

Схема запчастей Case IH JX1095C - (719195040[01]) - (DIA KIT) 3RD REMOTE S/D W/FLOAT + DELUXE COUPLERS. (18) - VARIATIONS
1.82.7/09a
1.82.7/09a
2
1
1
8
3
1
1
5
1
11
1.82.7/09a
6
10
1
7
12
4
1
1
1
1.82.7/09
1
1
1.82.7/09
9
1
1.82.7/09
1.82.7/09
pag. 3

Артикул

Название

Примечание

Количество

1

5180072

CONTROL VALVE

1шт.

2

5172456

PIN,6mm OD x 20mm L

1шт.

3

5178183

CLEVIS

1шт.

4

5116896

LINK,19.05mm Pitch

1шт.

5

5180283

RING,16mm ID x 18.5mm OD x 2.1mm Thk

D=18.72

3шт.

6

5146467

RING,19.2mm ID x 20.2mm OD x 2.3mm Thk

D=19.2

1шт.

7

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

D=24

1шт.

8

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

9

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

3шт.

10

11087776

CIRCLIP,Ext., M6, BLO

1шт.

11

5151505

THREADED ROD,3/8" - 24 x 8-1/4"

3шт.

12

5171283

CONTROL VALVE

ASSY

1шт.

S/D w/Float

1шт.

Выбрано товаров: 13
