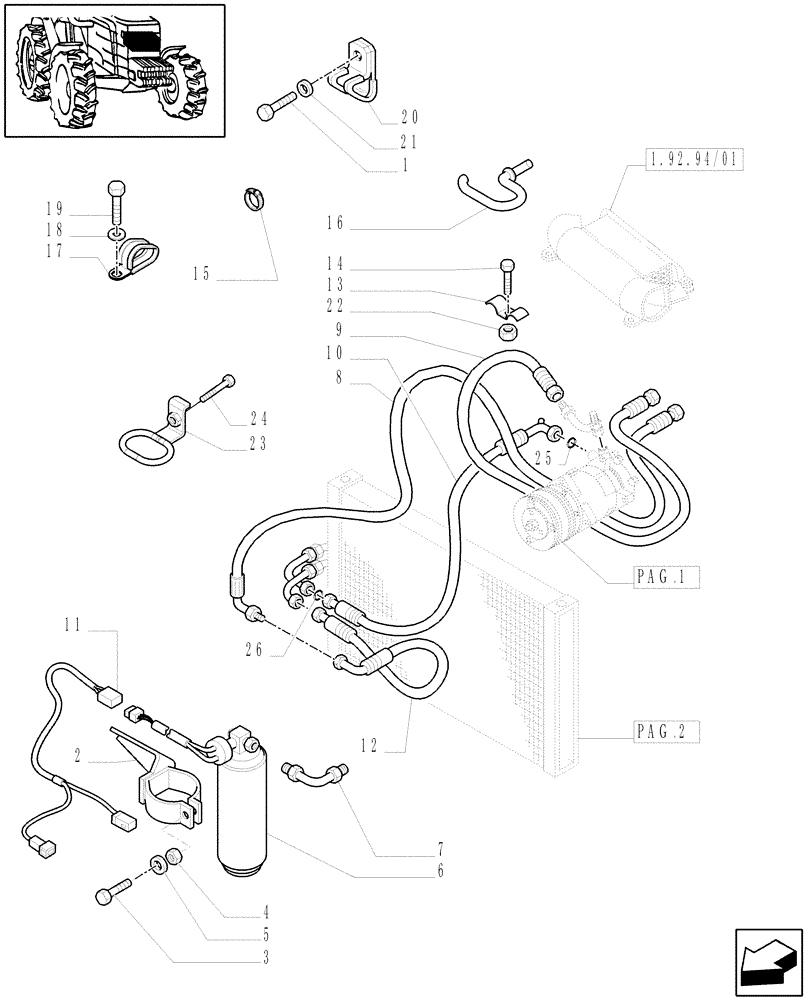

Запчасти Case IH JX1095C (0.88.0[03]) - (VAR.577-608) AIR CONDITIONING UNIT - FILTER AND BRACKET (01) - ENGINE

1

15853224

BOLT,Hex, M10 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

2

47125999

BRACKET

1шт.

3

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

4

15896214

NUT,M6, Cl 8

1шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

6

5165615

RECEIVER-DRYER

Includes High Pressure Switch

1шт.

7

5187830

ELBOW

1шт.

8

87310975

RIGID TUBE

From Conditioner to Dehydrator Filter

1шт.

9

87310976

FLEXIBLE HOSE

From, Serial Range: Conditioner-Compressor

1шт.

10

87310969

FLEXIBLE HOSE

From, Serial Range: Compressor-Condenser

1шт.

11

5192248

ELECTRIC CABLE

1шт.

12

87310973

FLEXIBLE HOSE

From Condenser to Dehydrator Filter

1шт.

13

87315076

BRACKET

1шт.

14

11001221

STUD

M5x7

1шт.

15

14560187

COLLAR,199mm L

L=203.2mm

1шт.

16

87311015

HOOK

1шт.

17

47128352

COLLAR

1шт.

18

14499604

WASHER,13mm ID x 20mm OD x 2.5mm Thk

1шт.

19

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

20

5185406

COLLAR

1шт.

21

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

22

10101001

WING NUT

M5

1шт.

23

87346533

HOSE CLIP

1шт.

24

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

25

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

26

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.
