(719044030[02]) - (DIA KIT) 4TH REMOTE S/D W/ DELUXE COUPLERS

Запчасти Case IH JX1095C (719044030[02]) - (DIA KIT) 4TH REMOTE S/D W/ DELUXE COUPLERS (18) - VARIATIONS

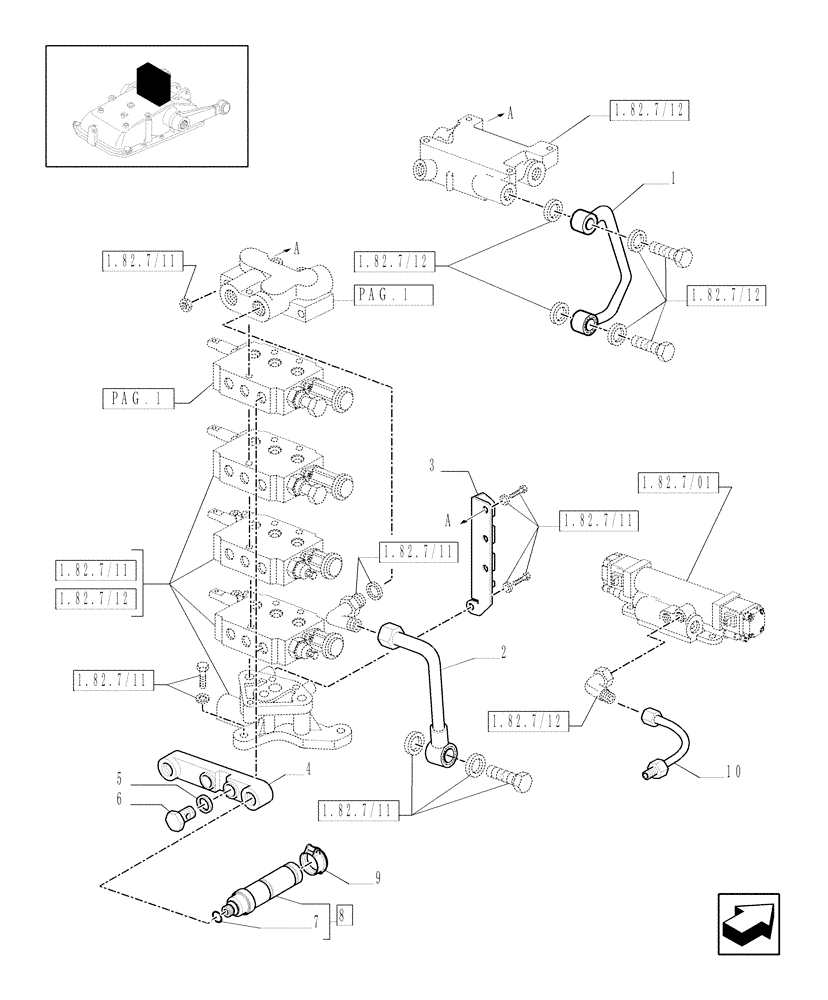

Схема запчастей Case IH JX1095C - (719044030[02]) - (DIA KIT) 4TH REMOTE S/D W/ DELUXE COUPLERS (18) - VARIATIONS
8
9
g
1.82.7/11
a
6
1.82.7/01
4
10
g
.
a
1
1.82.7/11
3
1.82.7/11
1.82.7/12
1
.
a
7
1
1.82.7/12
p
a
1.82.7/12
a
1.82.7/11
1.82.7/11
1.82.7/12
1.82.7/11
p
1.82.7/12
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5178032

RIGID TUBE

For EDC

1шт.

2

5175940

RIGID TUBE

For MDC

1шт.

3

5179944

CONSOLE

1шт.

4

5185533

HYD CONNECTOR

1шт.

5

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

6

5168481

BANJO BOLT,M18 x 1.5 x 38mm

M18

2шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

8

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

include p/n 1534623C1

2шт.

1534623C1

SEAL KIT

1шт.

9

47123643

CAP

Black

2шт.

10

47131635

RIGID TUBE

For EDC

1шт.
