Запчасти Case IH JX1095C (710372290[03]) - (DIA KIT) TRAILER BRAKE VALVE (ITALY) (18) - VARIATIONS

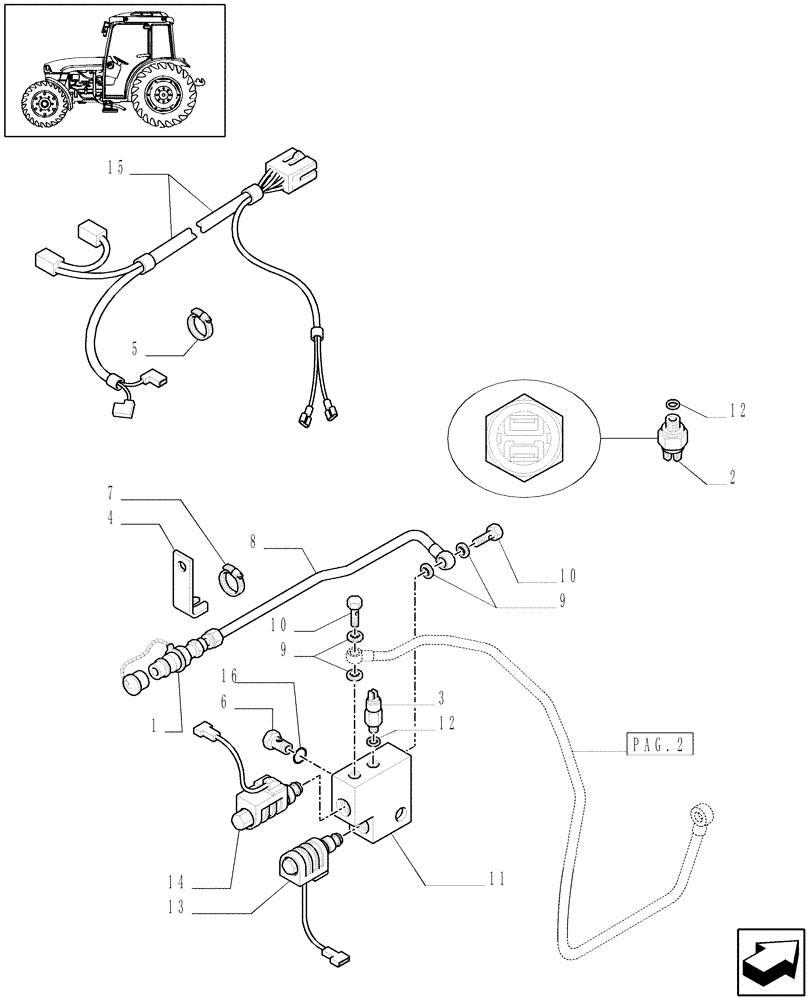

Схема запчастей Case IH JX1095C - (710372290[03]) - (DIA KIT) TRAILER BRAKE VALVE (ITALY) (18) - VARIATIONS
9
13
7
12
4
3
15
10
12
8
14
11
2
1
6
pag.2
5
10
16
9

Артикул

Название

Примечание

Количество

1

44015354

QUICK MALE COUPLING

1шт.

2

82030730

SWITCH ASSY

Oil

1шт.

3

5161047

PRESSURE SWITCH

Safety

1шт.

4

5174628

BRACKET

1шт.

5

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.

6

5174642

BANJO BOLT,M18 x 1.5 x 57.5mm

M18x1.5x51

1шт.

7

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

D=20-30

2шт.

8

5174640

RIGID TUBE,12mm OD

1шт.

9

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

4шт.

10

5184345

BANJO BOLT,M18 x 1.5 x 34mm

M18x34

2шт.

11

5176996

BLOCK

1шт.

12

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

2шт.

13

5177699

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

Trailer Brake

1шт.

14

5177698

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

Trailer Brake

1шт.

15

87303543

ELECTRIC CABLE

Trailer Brake Transmission

1шт.

16

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

Выбрано товаров: 16
