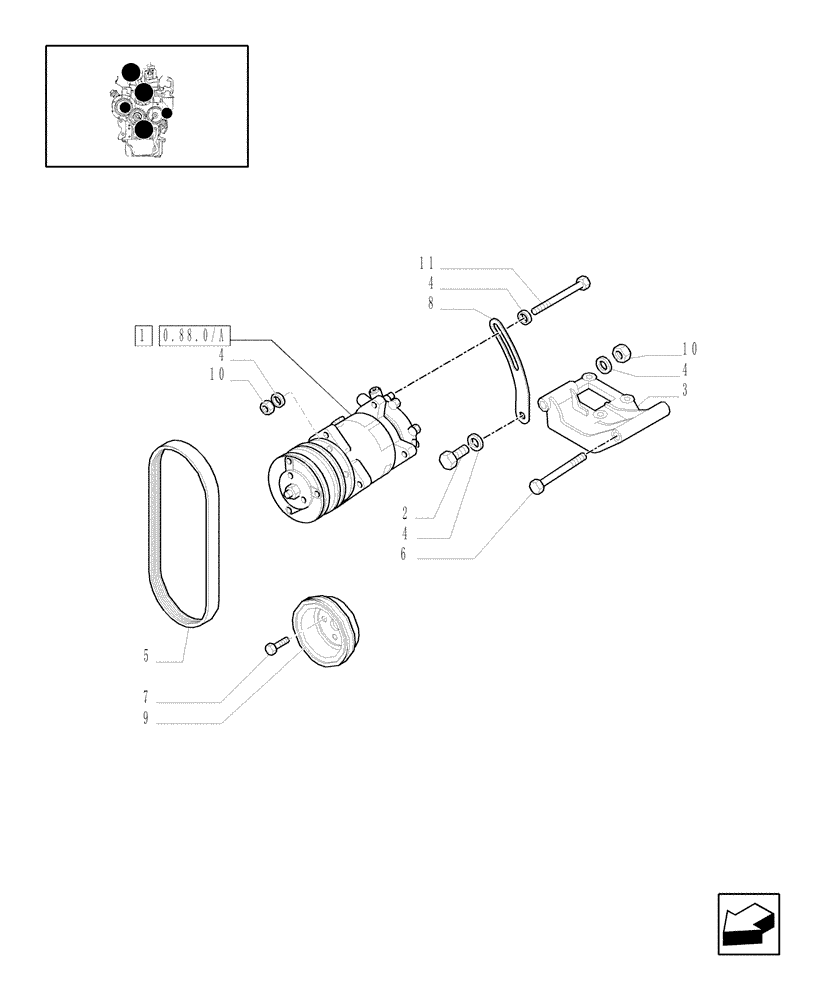

Запчасти Case IH JX1095C (0.88.0[01]) - (VAR.577-608) AIR CONDITIONING UNIT - BELTS & PULLEYS - COMPRESSOR (01) - ENGINE

1

47132887

AIRCOND. COMPRESSOR

1шт.

47132887R

REMAN-COMPRESSOR

JX1085C, JX1095C Both (10/05)

1шт.

47132887C

CORE-COMPRESSOR

Return Number

1шт.

2

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

2шт.

3

47129818

SUPPORT

1шт.

4

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

6шт.

5

47129821

BELT

960mm

1шт.

6

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

3шт.

7

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

8

47129819

TENSIONER

1шт.

9

47129820

PULLEY

1шт.

10

12164714

NUT,M10 x 1.25, Cl 8

2шт.

11

15972424

SCREW,Hex, M10 x 1.25 x 130mm, Cl 8.8

1шт.
