(710206034) - (DIA KIT) ENGINE BLOCK HEATER FOR 4 CYLINDER

Запчасти Case IH JX1095C (710206034) - (DIA KIT) ENGINE BLOCK HEATER FOR 4 CYLINDER (18) - VARIATIONS

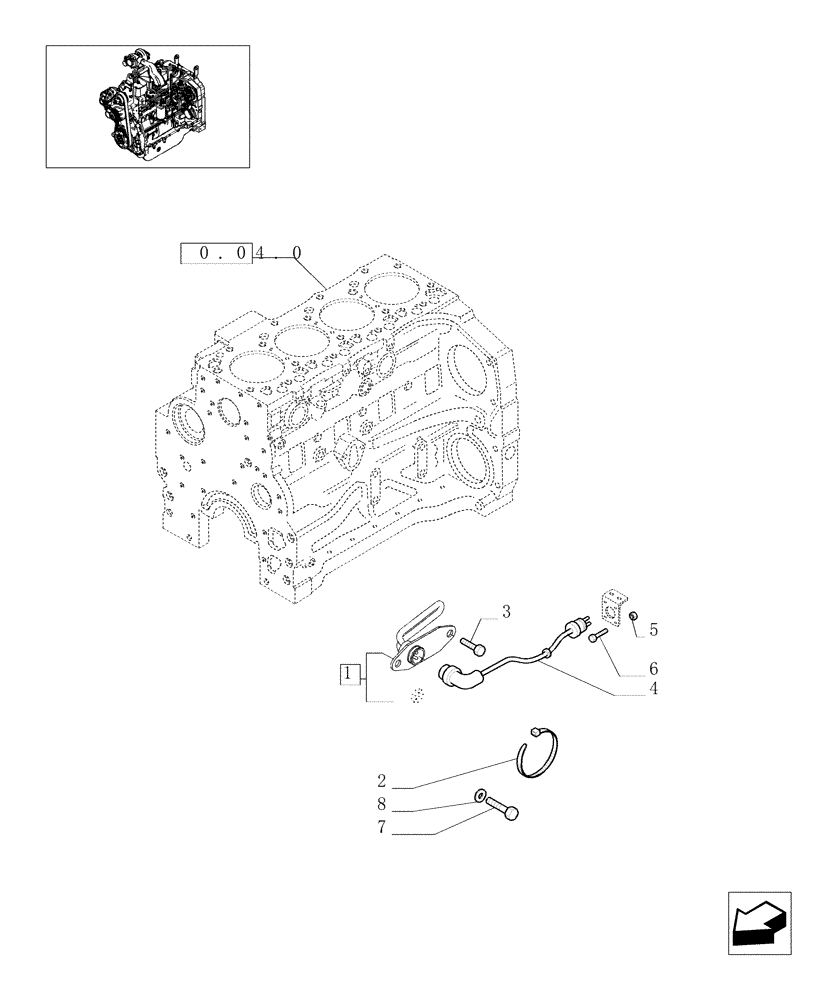

Схема запчастей Case IH JX1095C - (710206034) - (DIA KIT) ENGINE BLOCK HEATER FOR 4 CYLINDER (18) - VARIATIONS
7
0.04.0
4
1
6
5
8
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8602005

HEATER,750W, 120V

1шт.

2

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

3

4899068

BOLT,Flng, M8 x 1.25 x 16mm

2шт.

4

82030481

ELECTRIC CABLE

1шт.

5

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

6

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

2шт.

7

13271914

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

4шт.

8

10794014

NUT,M4, Cl 8

4шт.
