Запчасти Case IH JX1095C (710167010) - (DIA KIT) FRONT FENDERS F/FRONT AXLE L/BRAKES W/WIDE COVER (18) - VARIATIONS

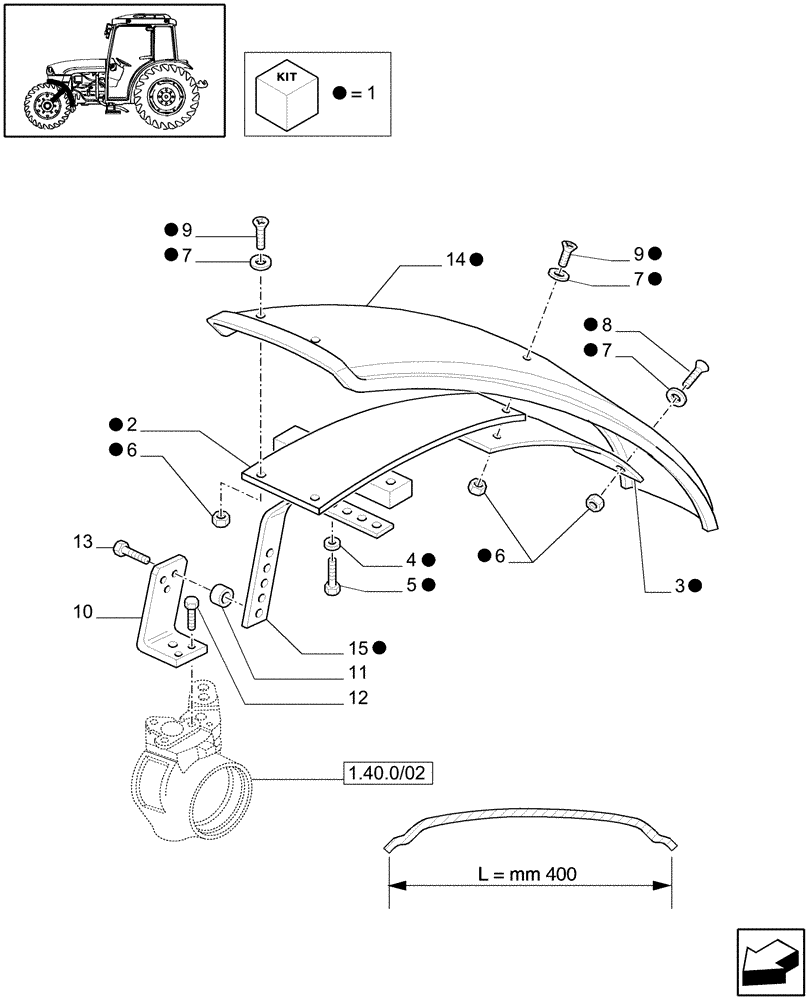

Схема запчастей Case IH JX1095C - (710167010) - (DIA KIT) FRONT FENDERS F/FRONT AXLE L/BRAKES W/WIDE COVER (18) - VARIATIONS
2
1
15
1
7
13
6
5
1.40.0/02
1
14
4
3
11
1
1
8
1
1
10
1
7
12
1
6
1
1
9
1
1
1
1
7
1
9

Артикул

Название

Примечание

Количество

1

5186947

FRONT FENDER

ASSY., RH

1шт.

1

5186948

FRONT FENDER

ASSY., LH

1шт.

2

5179697

FRAME

RH

1шт.

2

5179698

FRAME

LH

1шт.

3

5179701

REINFORCEMENT

LH

1шт.

3

5179705

REINFORCEMENT

RH

1шт.

4

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

5

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

4шт.

6

12574511

LOCK NUT,M10 x 1.25, Cl 8

8шт.

7

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

8шт.

8

14782514

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 20mm, Cl 5.8

2шт.

9

14782614

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 30mm, Cl 5.8

6шт.

10

5185292

SUPPORT

2шт.

11

5166193

SPACER,13mm ID x 40mm OD x 28mm L

13x40x28

4шт.

12

14233930

SCREW,M10 x 1.25 x 45mm

M10x1.25x45

6шт.

13

14275134

LOCK BOLT,Hex, M12 x 1.25 x 60mm, Cl 10.9

4шт.

14

5185182

COVER ASSY

2шт.

15

5186928

PILLAR

2шт.

Выбрано товаров: 18
